Supercharger Bypass Valve Actuator Replacement

WARNING: This page is about a different variant/trim than selected.

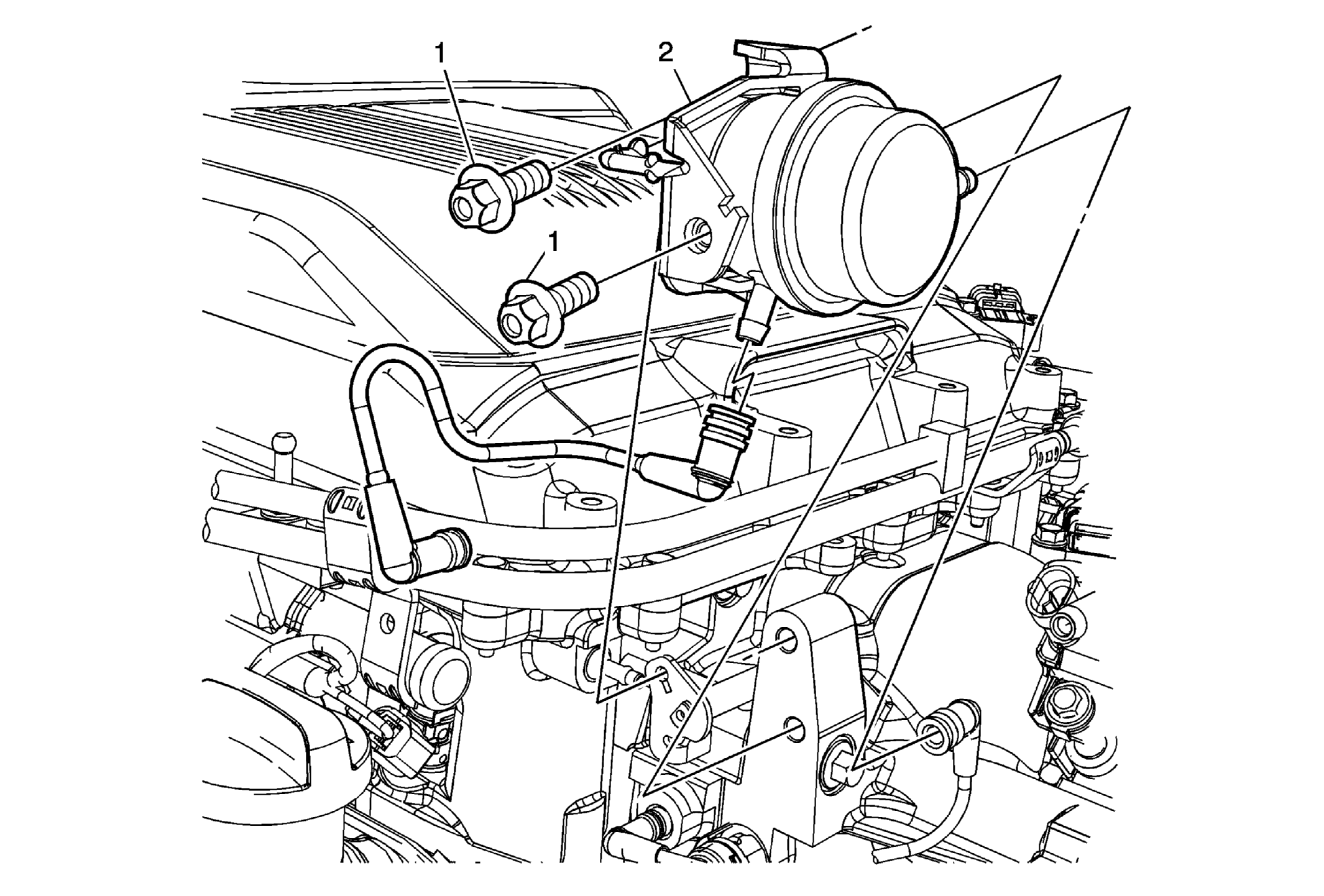

Fig 1: Identifying Supercharger Bypass Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the charge air bypass regulator solenoid. Refer to Charge Air Bypass Regulator Solenoid Valve Replacement
1	Supercharger Bypass Valve Actuator Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Supercharger Bypass Valve Actuator Procedure Vacuum Pipe<p01>@Supercharger Bypass Valve Actuator - Remove and DISCARD Adjust the actuator, as needed. Refer to Supercharger Assemble .

Callout

Component Name

Preliminary Procedure
Remove the charge air bypass regulator solenoid. Refer to Charge Air Bypass Regulator Solenoid Valve Replacement

Supercharger Bypass Valve Actuator Fasteners (Qty: 2)

CAUTION:

Tighten
10 N.m (89 lb in)

Supercharger Bypass Valve Actuator

Procedure
