Charge Air Bypass Regulator Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

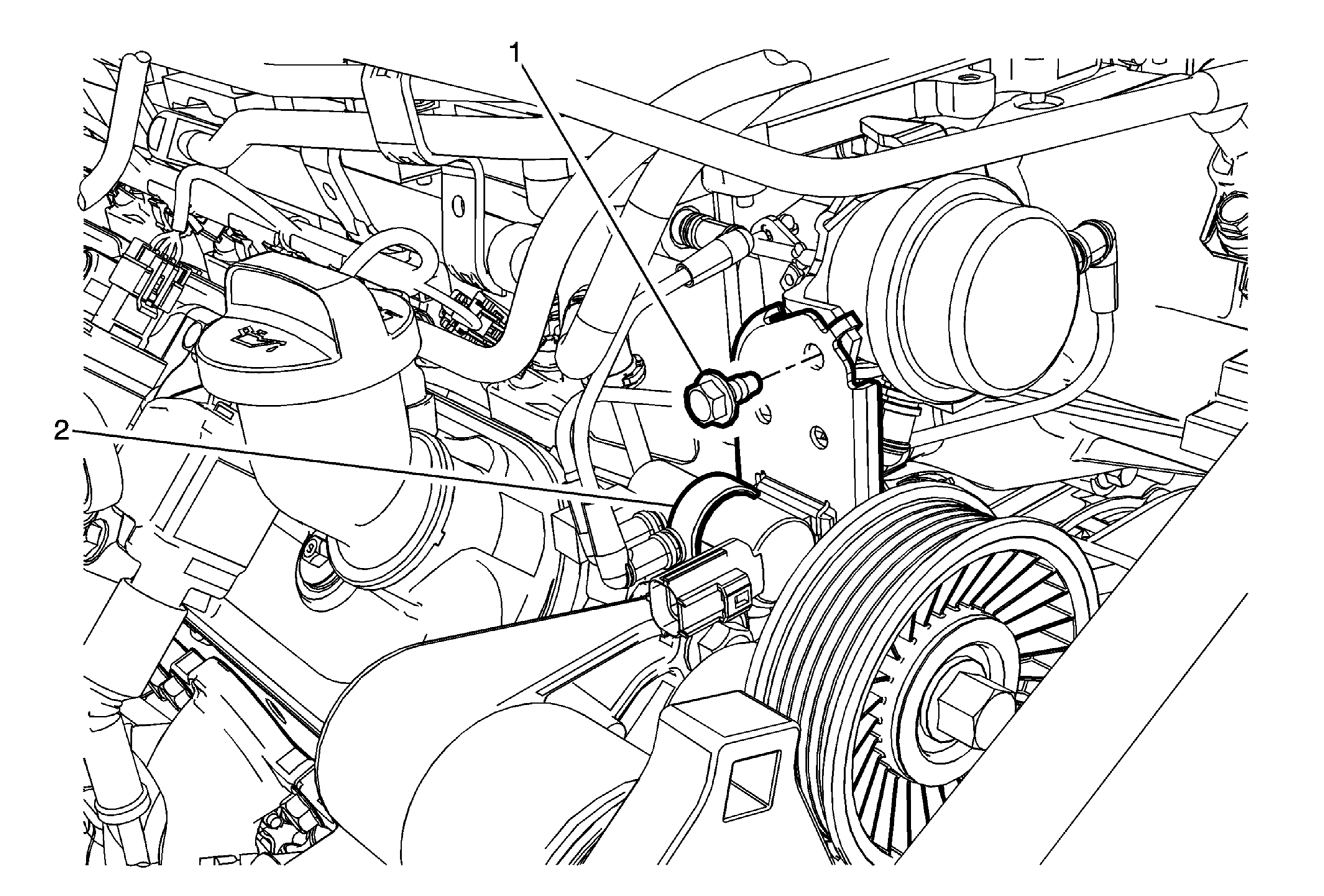

Fig 1: Charge Air Bypass Regulator Solenoid Valve & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Charge Air Bypass Regulator Solenoid Valve Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Bypass Regulator Solenoid Valve Procedure Disconnect the electrical wiring harness connector from the charge air bypass regulator solenoid valve. Vacuum Pipe<p01>@Charge Air Bypass Regulator Solenoid Valve - Remove and DISCARD

Callout

Component Name

Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .

Charge Air Bypass Regulator Solenoid Valve Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Charge Air Bypass Regulator Solenoid Valve

Procedure

Disconnect the electrical wiring harness connector from the charge air bypass regulator solenoid valve.
Vacuum Pipe<p01>@Charge Air Bypass Regulator Solenoid Valve - Remove and DISCARD
