Evaporative Emission Canister Vent Solenoid Valve Replacement

WARNING: This page is about a different variant/trim than selected.

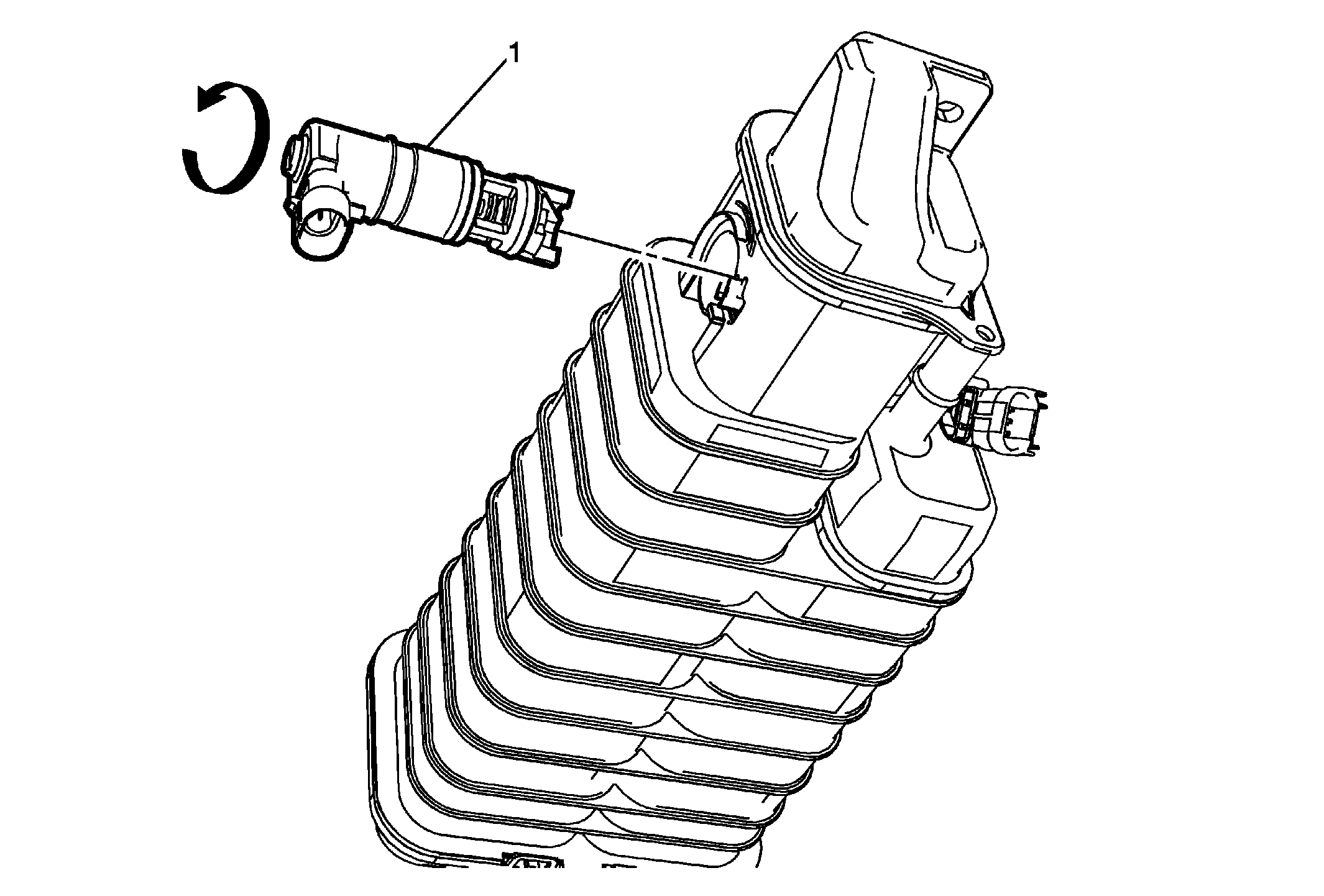

Fig 1: Evaporative Emission Canister Vent Solenoid Valve
GM2555039Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the evaporative emission canister. Refer to Evaporative Emission Canister Replacement
1 Evaporative Emission Canister Vent Solenoid Valve

Procedure

  1. Release the retaining tab and turn the valve counter-clockwise.
  2. Disconnect the electrical connector.
