Evaporative Emission Canister Replacement

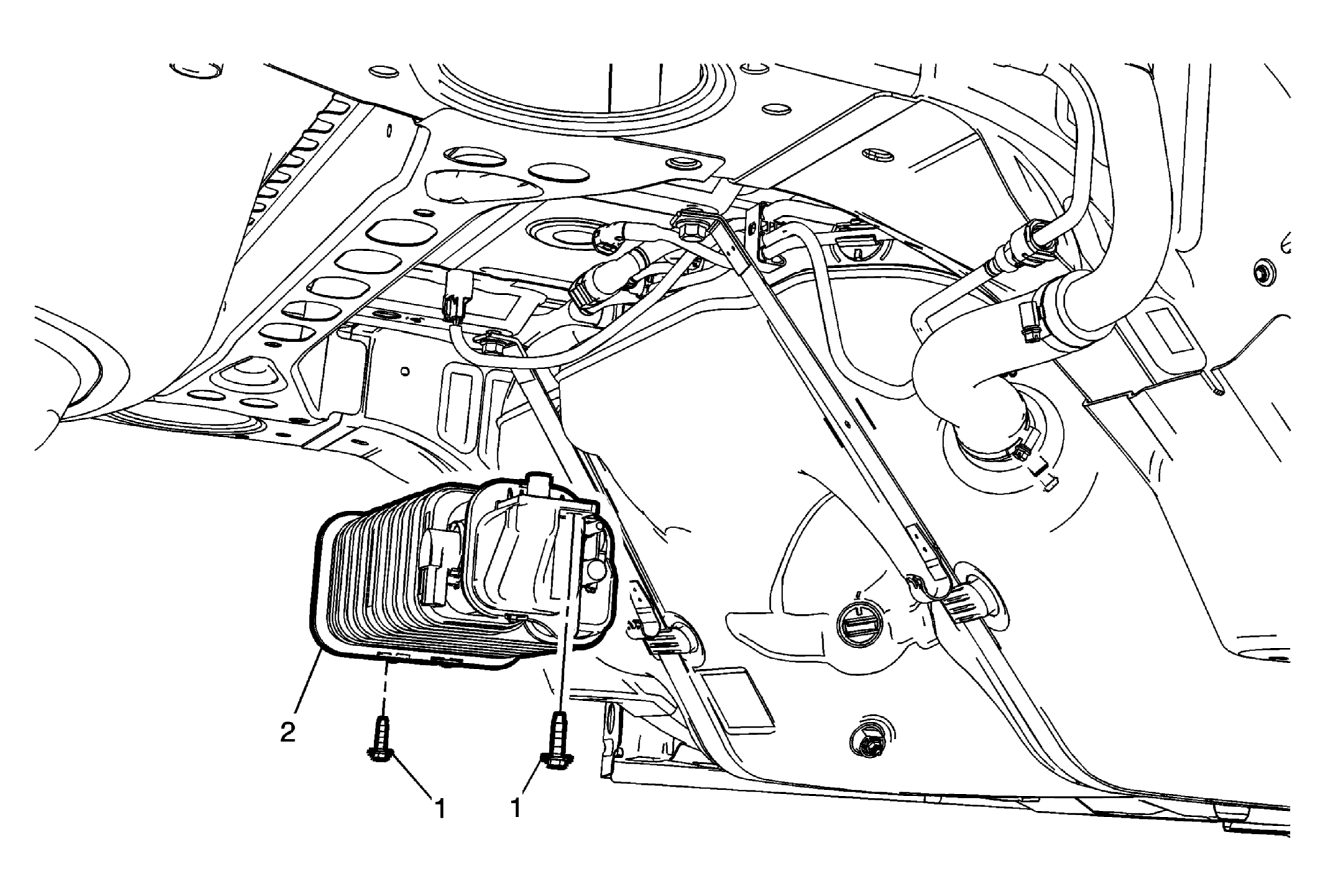

Fig 1: Evaporative Emission Canister & Fasteners
GM2555030Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Disconnect the evaporative emission pipes. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Lower the rear suspension support. Refer to Rear Suspension Support Replacement .
1 Evaporative Emission Canister Fastener (Qty: 2)
2 Evaporative Emission Canister

Procedure

  1. Disconnect the electrical connectors.
  2. Transfer parts as necessary.
