Air Cleaner Housing Cover Replacement (LS7)
WARNING: This page is about a different variant/trim than selected.

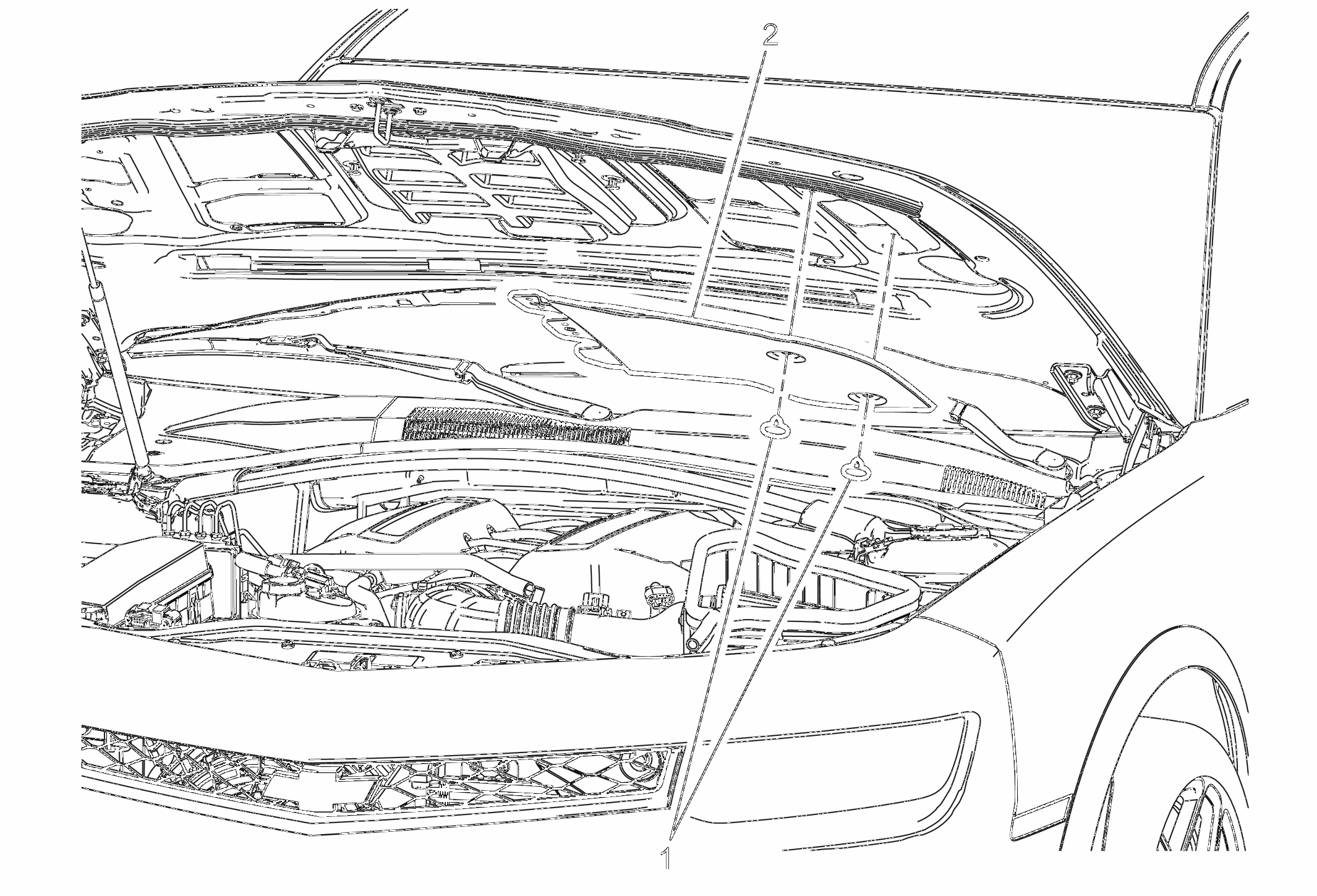

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the three retainers from the hood air scoop that overlap the air cleaner housing cover only. Hood Air Scoop Replacement (Z28) |
|
| 1 | Air Cleaner Housing Cover Retainers (Qty :2) |
| 2 | Air Cleaner Housing Cover
NOTE:
Note the location of the tabs during removal from hood. Procedure Slide the air cleaner housing cover from in between the hood air scoop and the hood. |
