Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the supercharger. Supercharger and Gasket Replacement
  2. Remove the supercharger bypass valve actuator. Supercharger Bypass Valve Actuator Replacement

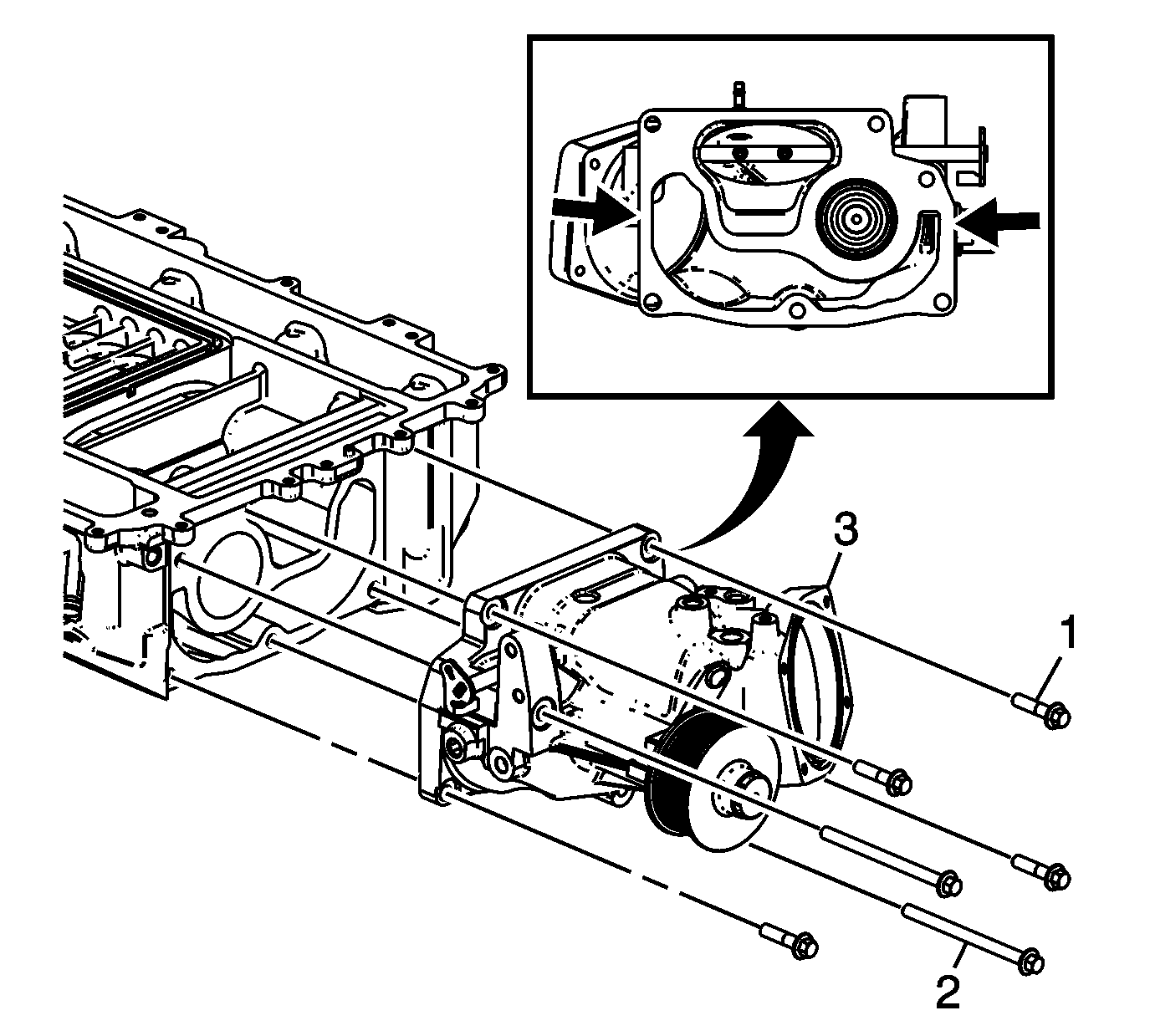

    3. Fig 1: Supercharger Front Cover Assembly Bolts
    GM4086210Courtesy of GENERAL MOTORS COMPANY
  3. Remove and DISCARD the short supercharger front cover assembly bolts (1) (Qty: 4).
  4. Remove and DISCARD the long supercharger front cover assembly bolts (2) (Qty: 2).
    5. NOTE:

    The supercharger front cover assembly is sealed to the supercharger assembly with room temperature vulcanizing (RTV) sealant. Use a suitable pry tool at pry points indicated by arrows to aid in the removal of the supercharger front cover assembly.

  5. Remove the supercharger front cover assembly (3).
    6. Fig 2: Dowel Pins
    GM4086206Courtesy of GENERAL MOTORS COMPANY
  6. Remove and DISCARD the dowels (2) (Qty: 2) from the supercharger assembly (1).
