Engine Oil Cooler Replacement (LS7)

WARNING: This page is about a different variant/trim than selected.

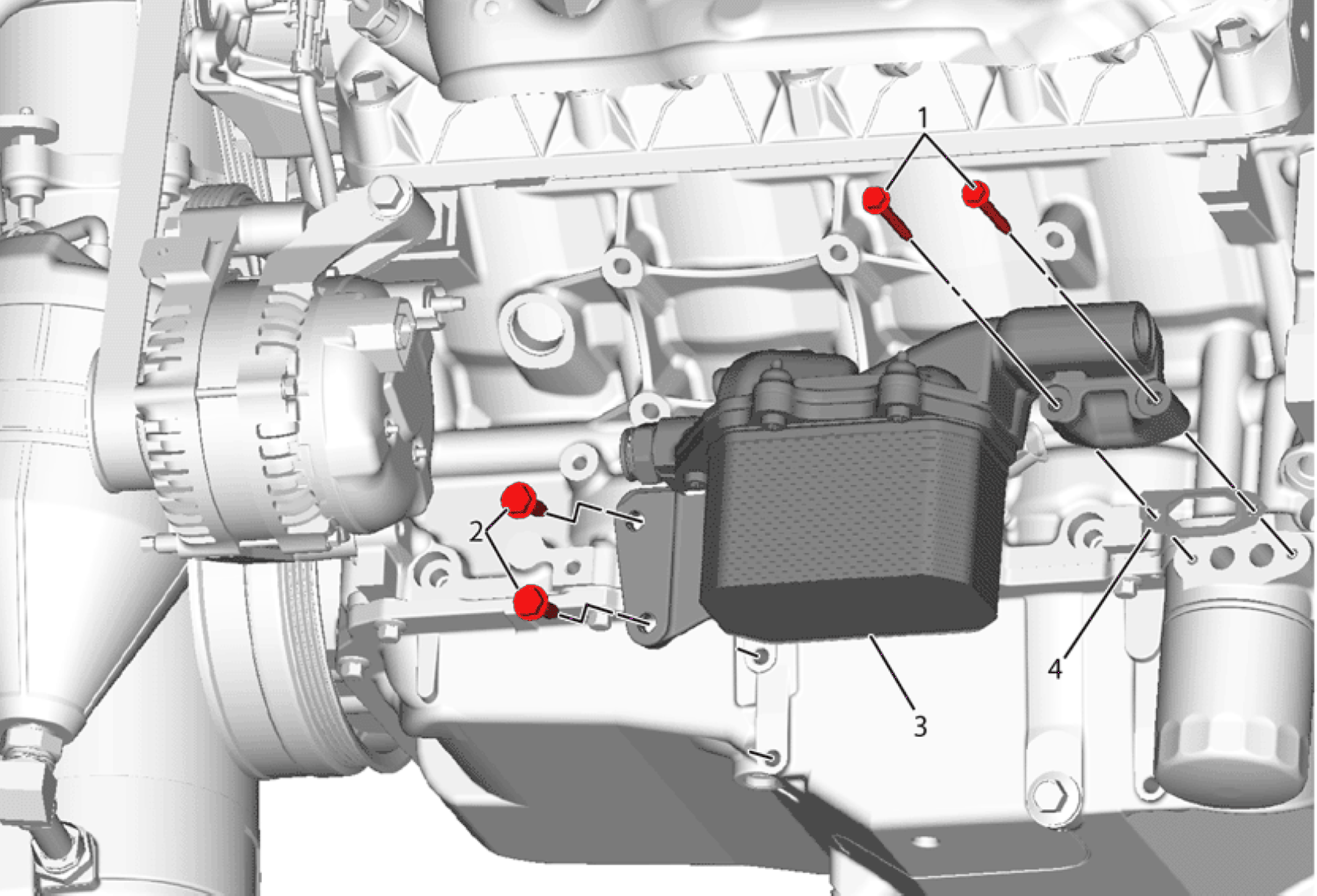

Fig 1: Engine Oil Cooler (LS7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the engine oil cooler outlet hose. Refer to Engine Oil Cooler Coolant Outlet Hose Replacement (LS7) . Remove the engine oil cooler inlet pipe. Refer to Engine Oil Cooler Inlet Pipe Replacement (LS7) .
1	Engine Oil Cooler Adapter Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Engine Oil Cooler Adapter Fastener (Qty: 2) Tighten 25 N.m (18 lb ft )
3	Engine Oil Cooler Adapter Procedure Transfer components as necessary.
4	Gasket Procedure Replace with NEW gasket.
