Engine Oil Cooler Inlet Pipe Replacement (LS7)

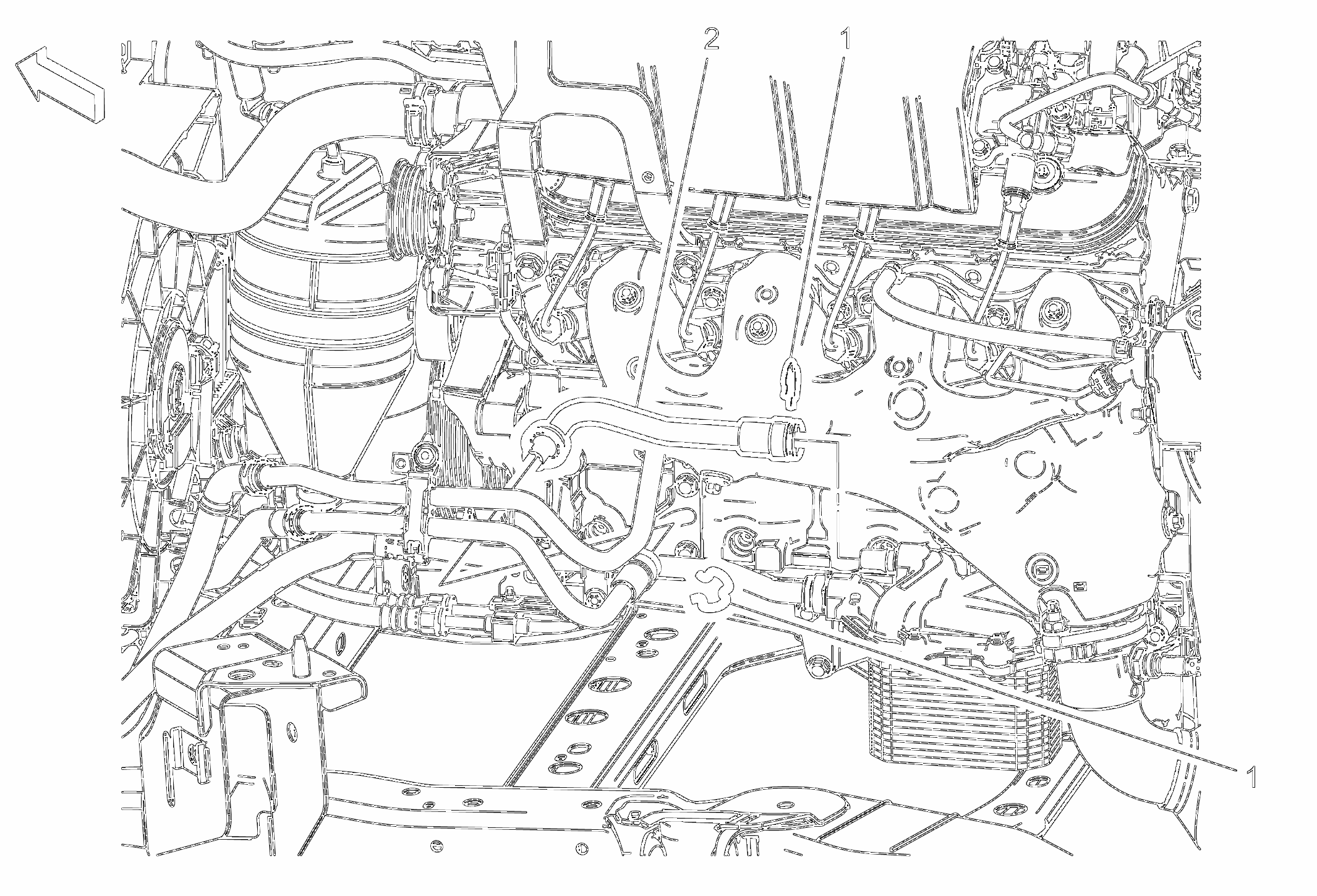

Fig 1: Engine Oil Cooler Inlet Pipe (LS7)
GM3654227Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
  2. Remove the auxiliary radiator outlet hose from the engine oil cooler inlet pipe. Refer to Auxiliary Radiator Outlet Hose Replacement (LS7) .
  3. Remove the generator. Refer to Generator Replacement (LS7, LSA) .
1 Engine Oil Cooler Inlet Pipe Retainer

Procedure

  1. Use a small flat blade screwdriver to remove the auxiliary radiator inlet pipe retainer from the engine oil cooler quick connect fitting.
  2. Disconnect the engine oil cooler inlet pipe from the engine oil cooler.
2 Engine Oil Cooler Inlet Pipe

Procedure

  1. Fill the cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
  2. Check the cooling system for leaks.
