Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the crankshaft balancer. Refer to Crankshaft Balancer Replacement (LS7) .
  2. Remove the generator bracket. Refer to Generator Bracket Replacement (LS7, LSA) .

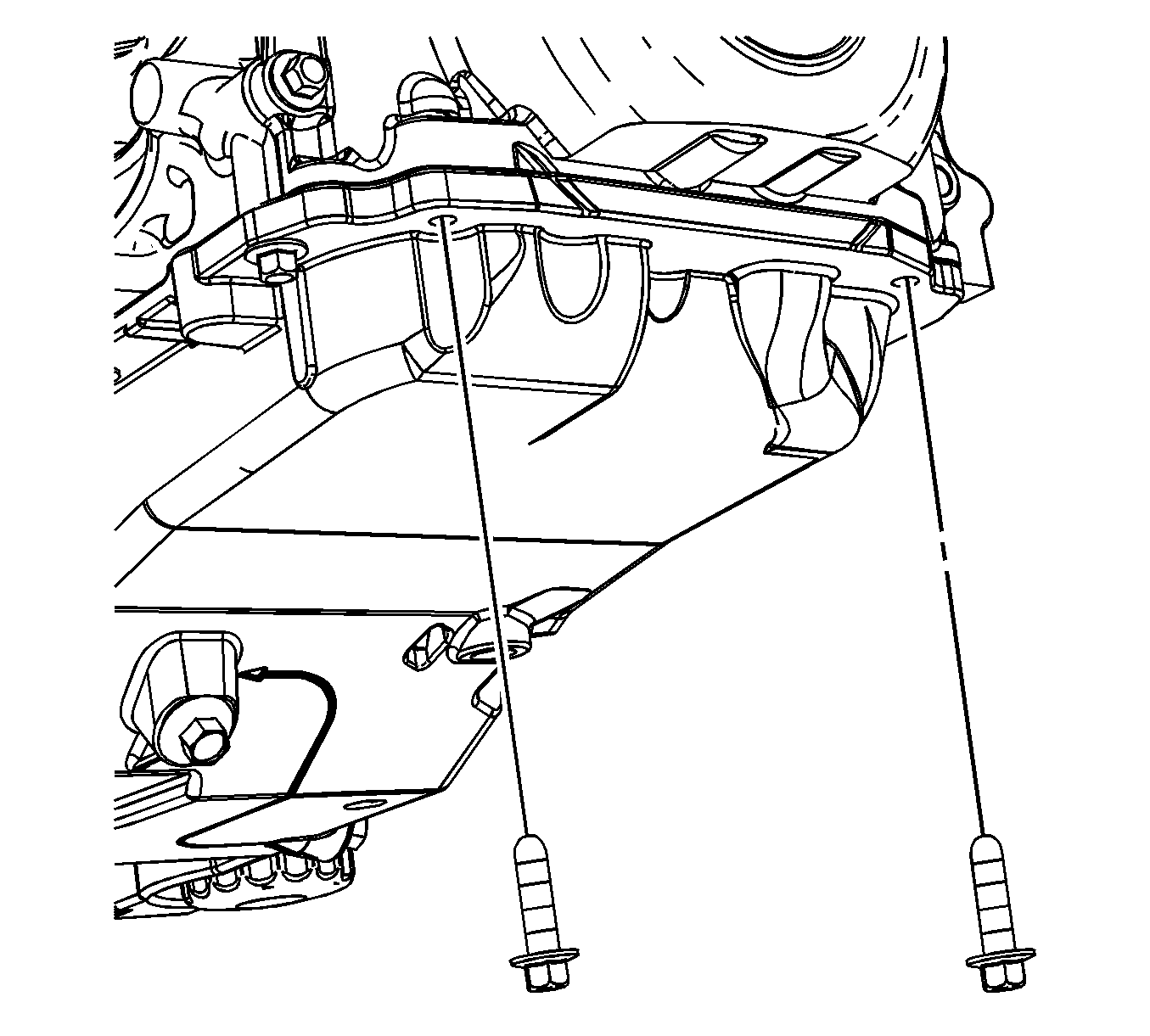

    3. Fig 1: View Of Front Oil Pan To Front Cover M8 Bolts
    GM1705970Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 2 front oil pan to front cover M8 bolts.
  4. Remove the water pump. Refer to Water Pump Replacement (LS7, LS3/L99) .
    5. Fig 2: View Of CMP Sensor Electrical Connector
    GM1705990Courtesy of GENERAL MOTORS COMPANY
  5. Disconnect the camshaft position (CMP) sensor electrical connector.
    6. Fig 3: Identifying Front Cover Components
    GM2126896Courtesy of GENERAL MOTORS COMPANY
  6. Remove the front cover bolts (1).
  7. Remove the front cover (2) and discard the gasket (3).
  8. Discard the front cover gasket.
  9. Clean and inspect the engine front cover. Refer to Engine Front Cover Cleaning and Inspection (LS7) .
    10. Fig 4: Camshaft Position (CMP) Sensor
    GM3679778Courtesy of GENERAL MOTORS COMPANY
  10. Remove and discard the oil seal (1).
  11. Remove the bolt (2), camshaft position (CMP) sensor (3).
  12. Remove the O-ring (4) from the sensor, as required.
