Intake Manifold Cover Replacement - Rear

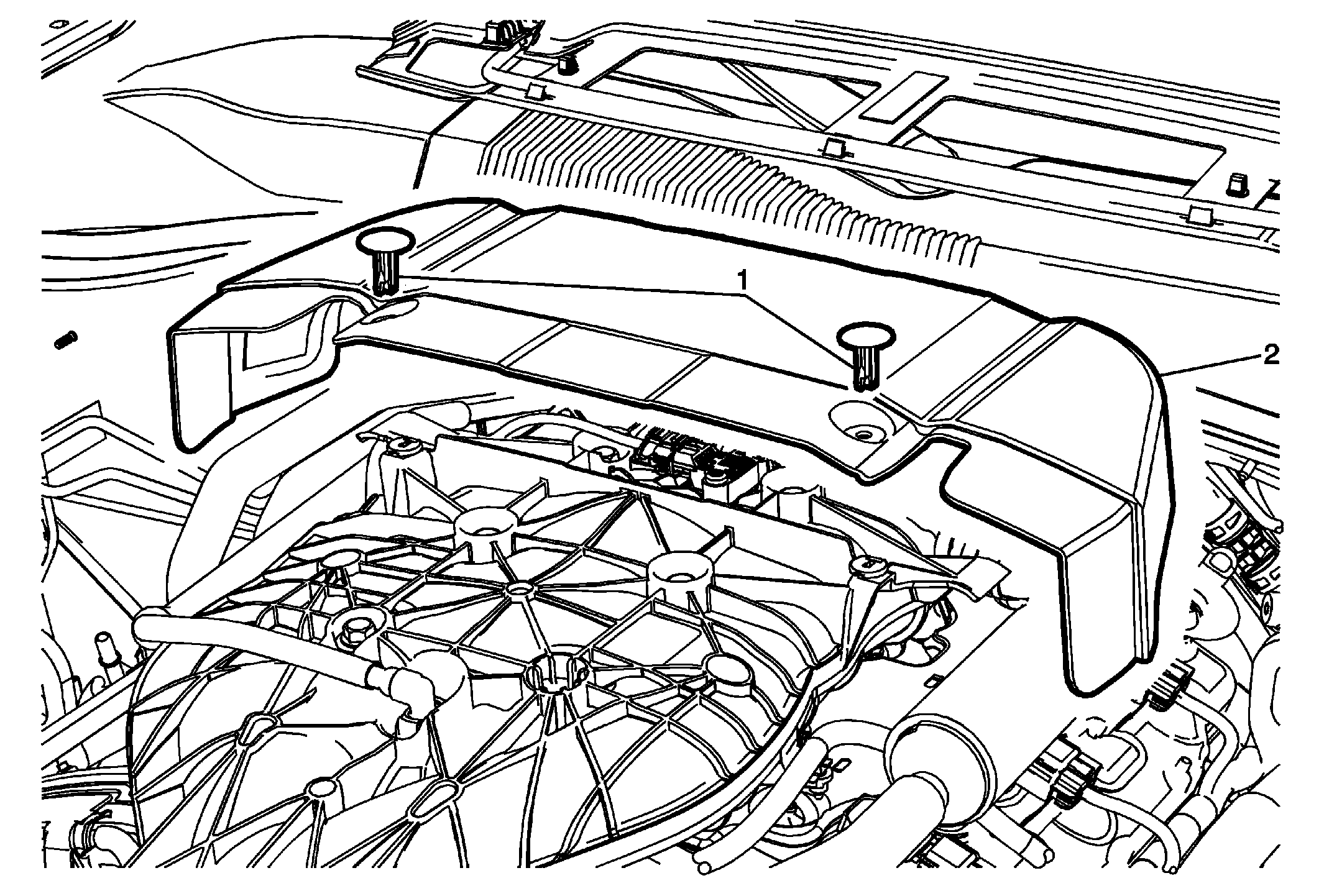

Fig 1: Intake Manifold Cover & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
1	Rear Intake manifold Cover Retainer (QTY:2)
2	Rear Intake Manifold Cover
