Intake Manifold Cover Replacement - Front

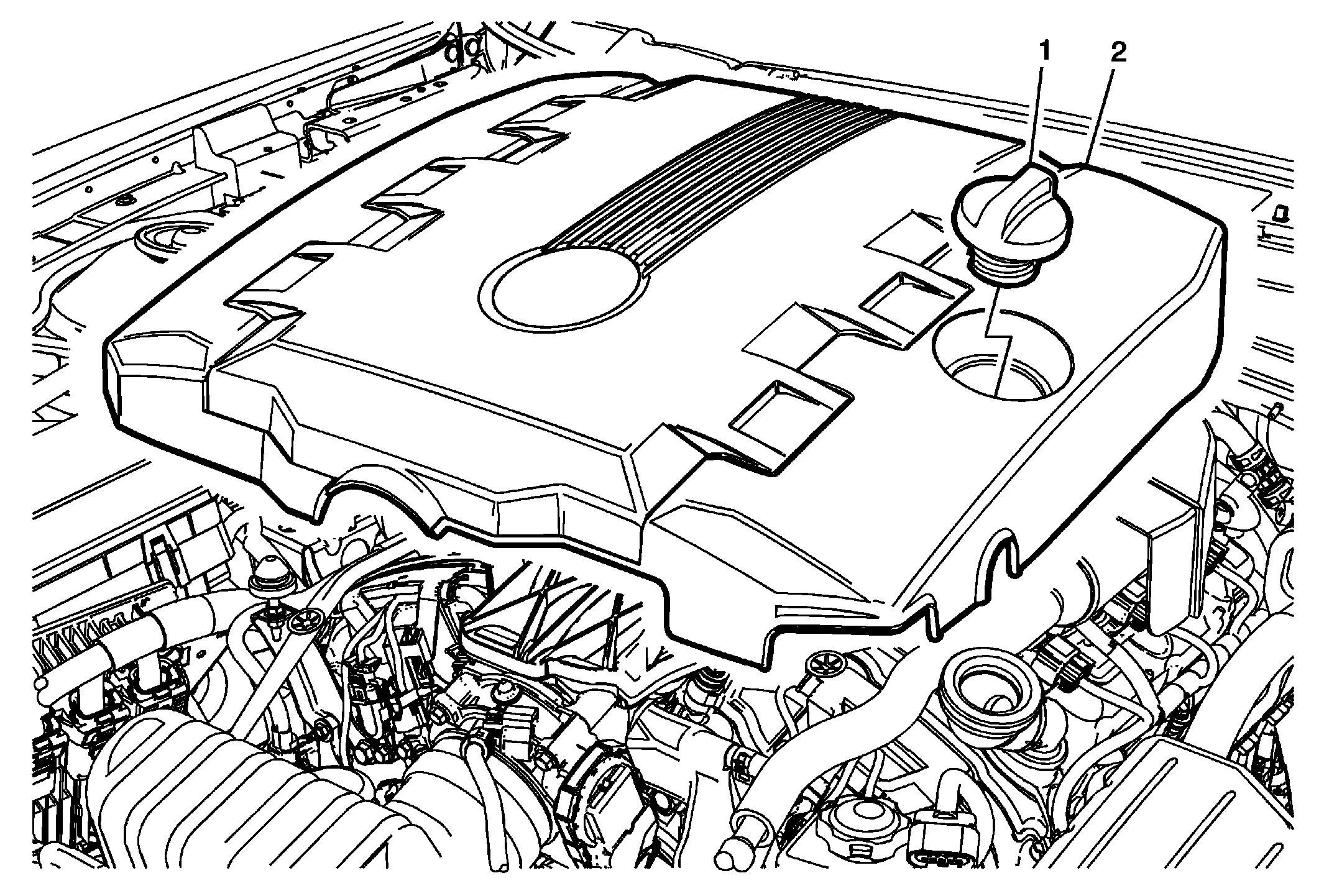

Fig 1: Intake Manifold Cover
GM2667620Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Filler Cap
2 Intake Manifold Cover

Procedure

  1. Grasp cover on outside edges and lift up to release from retainers.
  2. Pull the cover forward to remove from the rear tabs.
