Preliminary Procedures
- Remove the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LS7)
.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
.
- Drain the cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
|

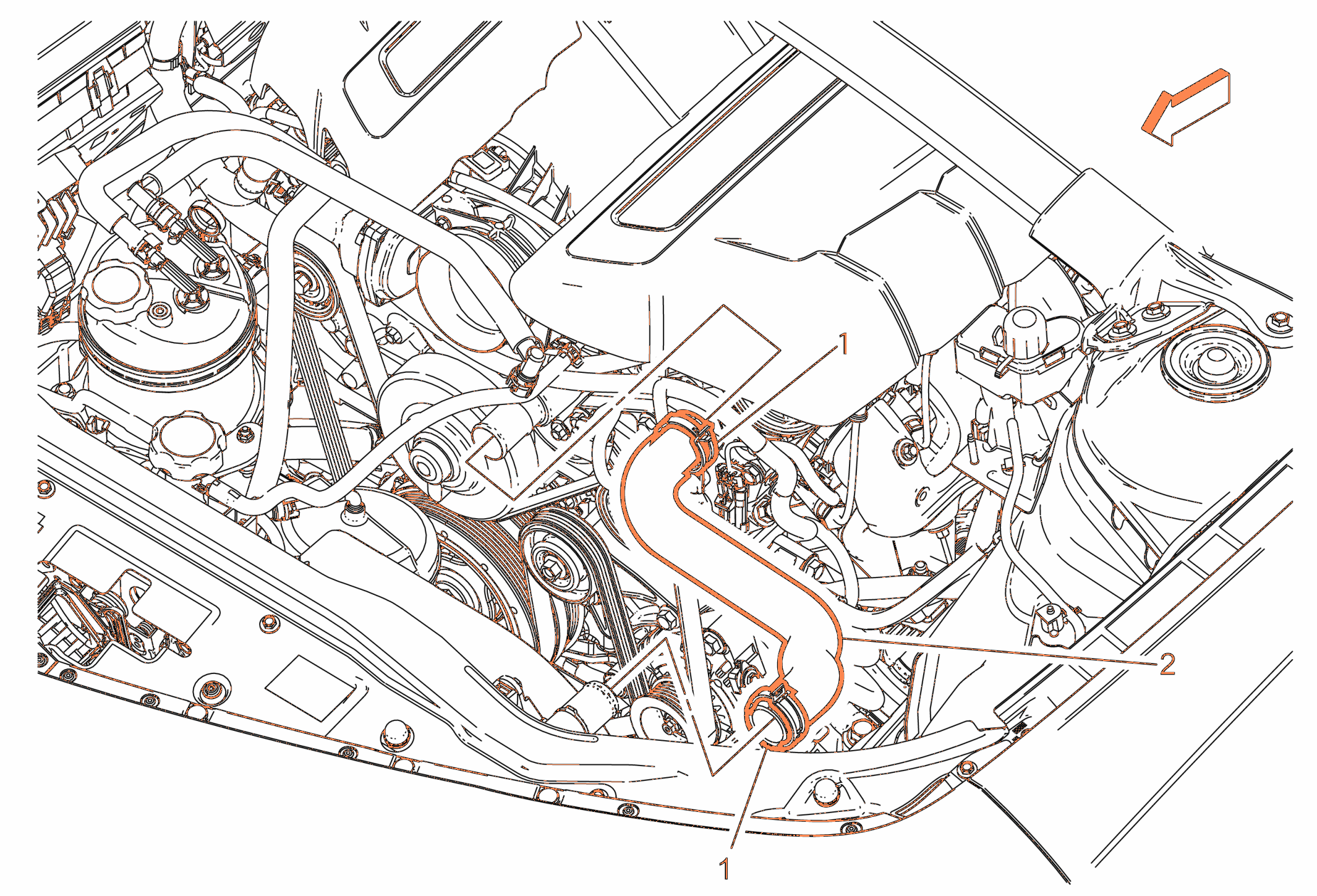

| 1 |
Radiator Inlet Hose Clamp (Qty: 2)
Procedure
Disengage tension on the radiator inlet hose clamps using the BO-38185
hose clamp pliers.
Special Tools
BO-38185
Hose Clamp Pliers
For equivalent regional tools, refer to Special Tools
. |
| 2 |
Radiator Inlet Hose Procedure
- Remove the radiator inlet hose from the radiator.
- Remove the radiator inlet hose from the water pump housing.
- Install the radiator inlet hose to the water pump housing.
- Install the radiator inlet hose to the radiator.
- Fill the cooling system to the proper level. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
- Inspect the cooling system for leaks.
|
