Engine Coolant Fan Motor Replacement

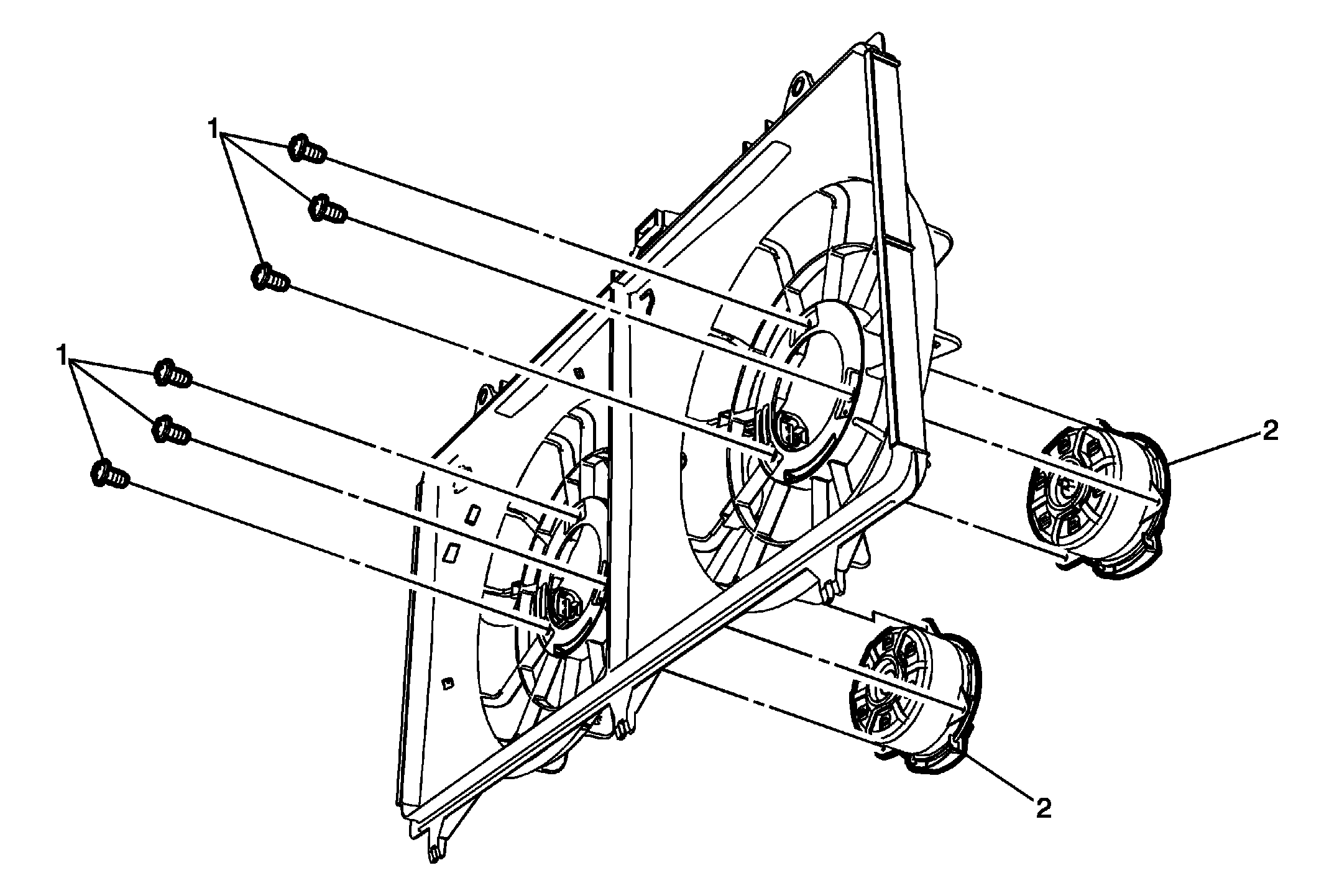

Fig 1: Engine Coolant Fan Motor
GM2857586Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove engine coolant fan. Refer to Engine Coolant Fan Replacement
1 Engine Coolant Fan Motor Fastener (Qty: 6) Three Per Motor
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Engine Coolant Fan Motor (Qty: 2)
