Coolant Recovery Reservoir Pipe Replacement (LS7)

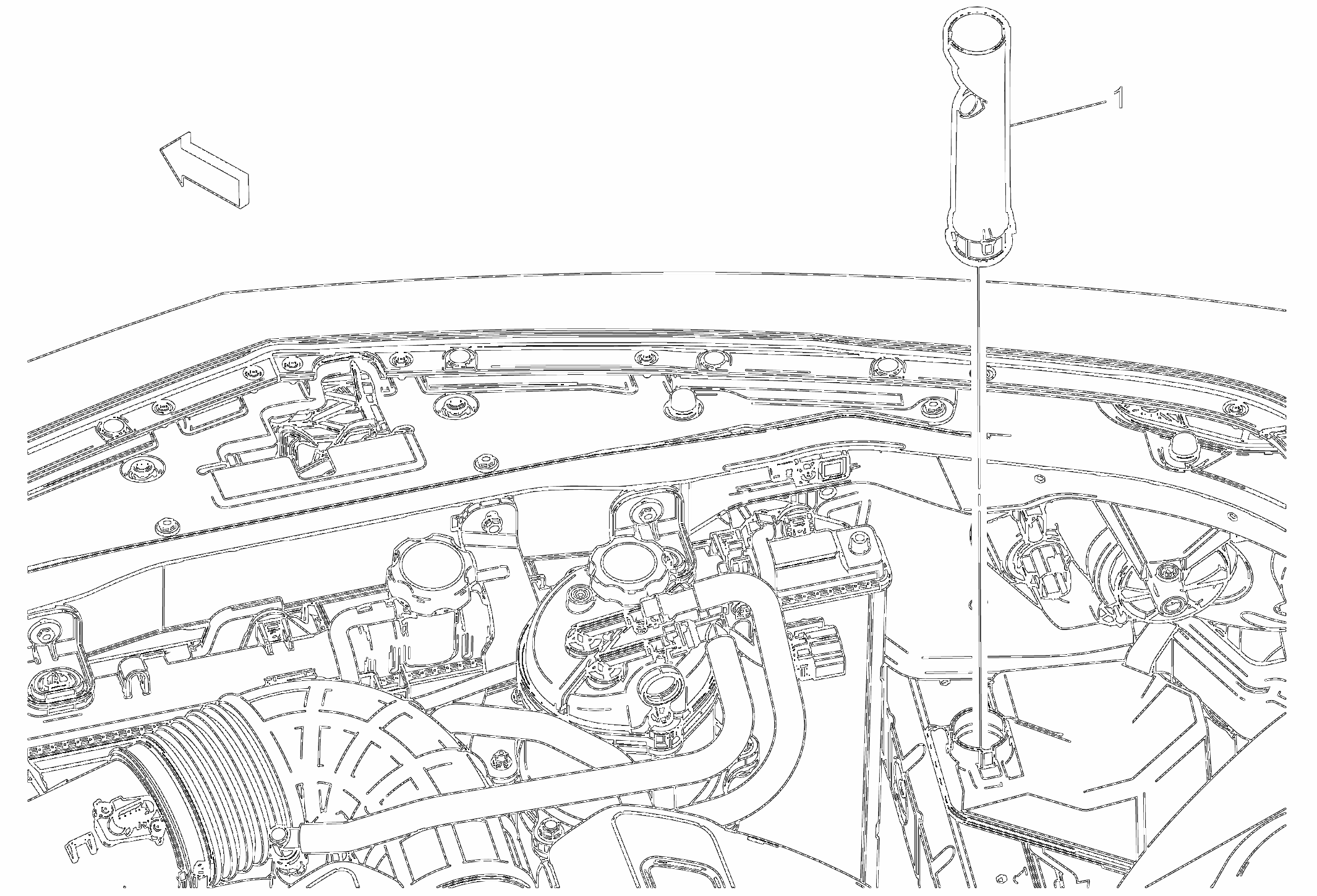

Fig 1: Coolant Recovery Reservoir Pipe (LS7)
GM3654890Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Drain the cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
  2. Remove the radiator vent inlet hose. Refer to Radiator Vent Inlet Hose Replacement (LS7) .
1 Coolant Recovery Reservoir Pipe

Procedures

  1. Fill the cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill) Cooling System Draining and Filling (GE 47716) .
  2. Check the cooling system for leaks.
