Radiator Vent Inlet Hose Replacement (LS7)
Radiator Vent Inlet Hose Replacement (LS7)

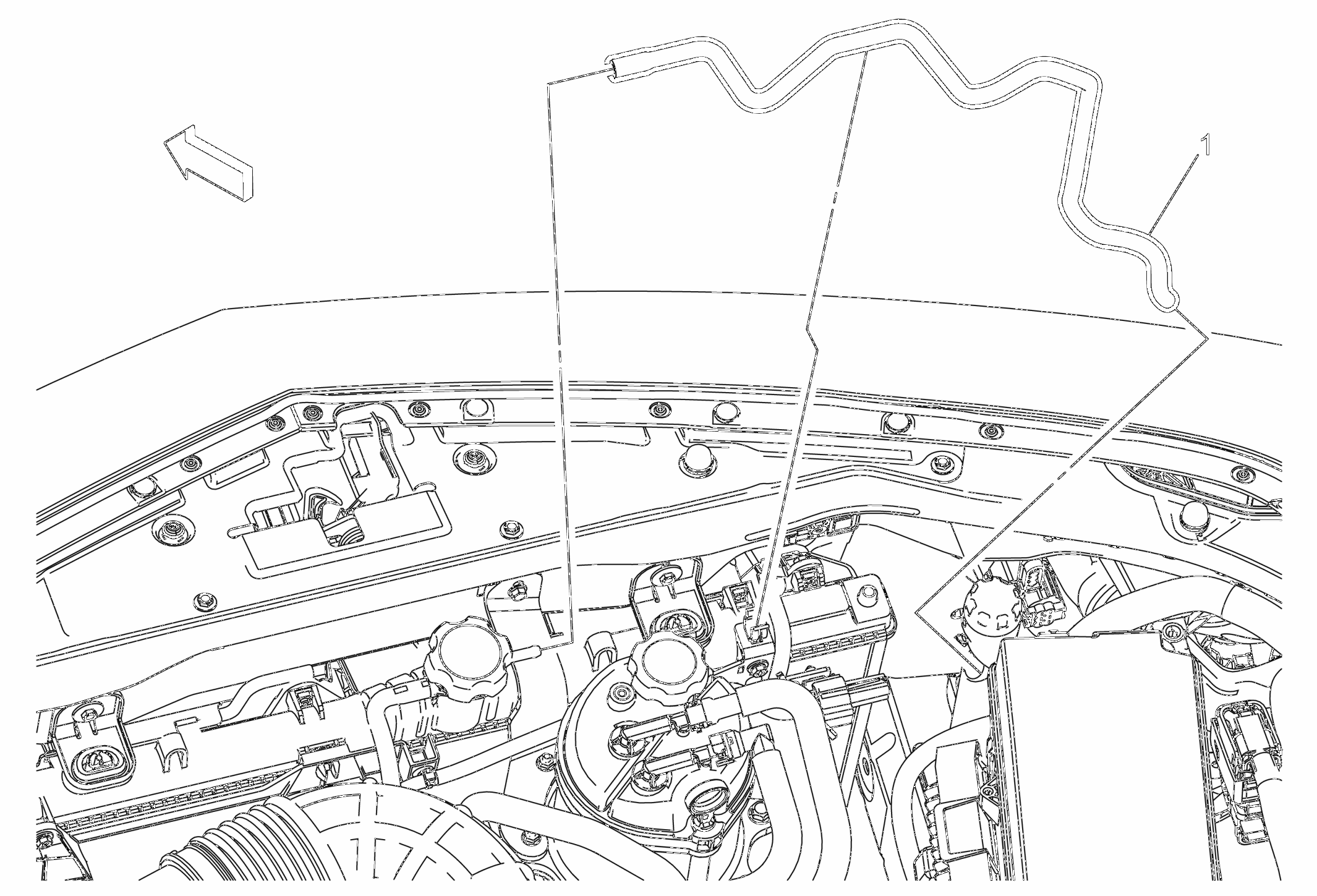

Fig 1: Radiator Vent Inlet Hose (LS7)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Drain the coolant from the radiator vent inlet hose.
1
Radiator Vent Inlet Hose
Procedure
Remove the radiator vent inlet hose from the retaining clip.
