Front Bumper Fascia Energy Absorber Replacement (ZL1)

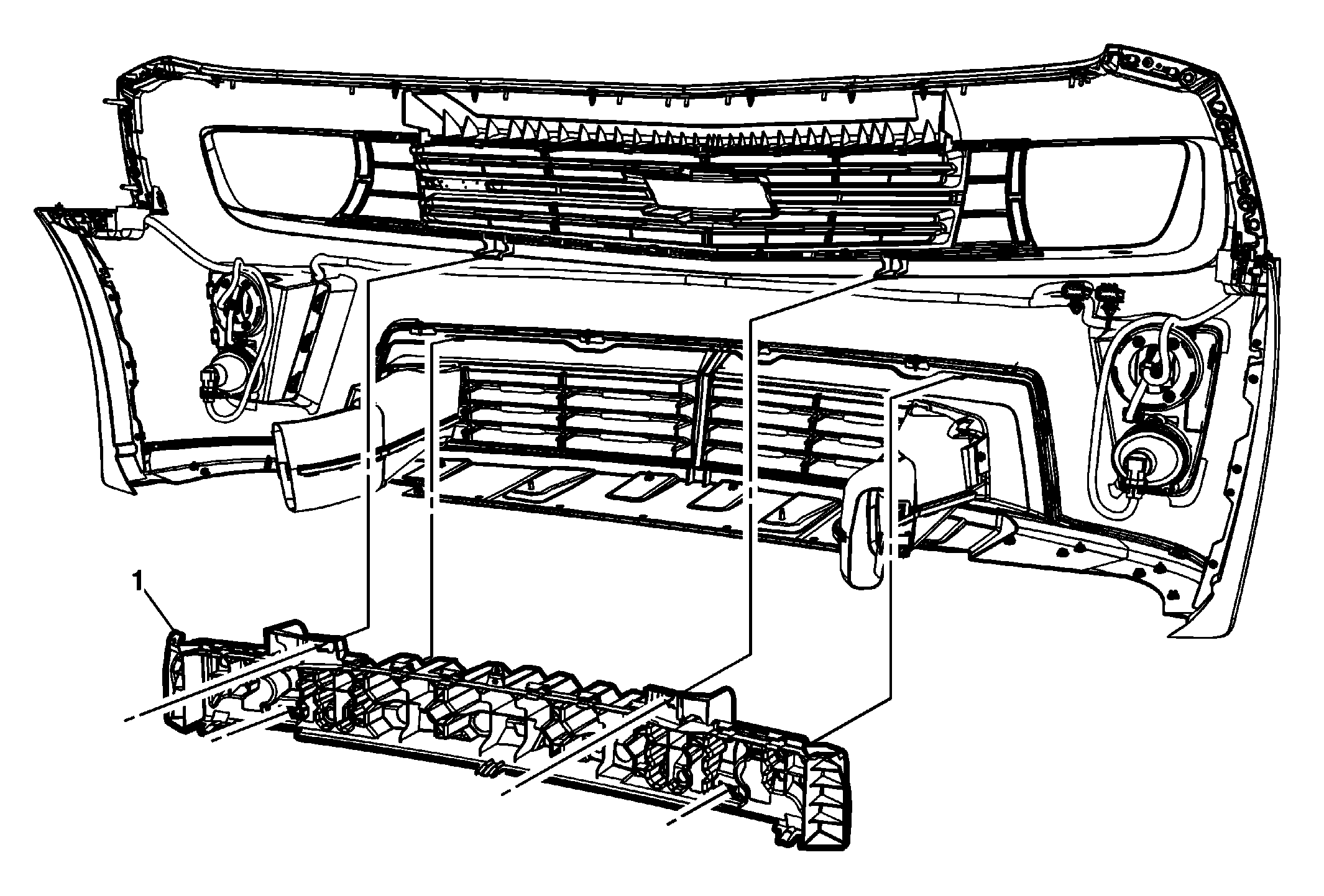

Fig 1: Front Bumper Fascia Energy Absorber (ZL1)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front fascia. Refer to Front Bumper Fascia Replacement (ZL1) .
1	Front Bumper Fascia Energy Absorber Procedure Disconnect the electrical harness from the front fascia energy absorber and reposition. Release both retainer tabs before removing the absorber.

Callout

Component Name

Preliminary Procedure
Remove the front fascia. Refer to Front Bumper Fascia Replacement (ZL1) .

Front Bumper Fascia Energy Absorber

Procedure

Disconnect the electrical harness from the front fascia energy absorber and reposition.
Release both retainer tabs before removing the absorber.
