Left Side of Engine Compartment Harness Routing

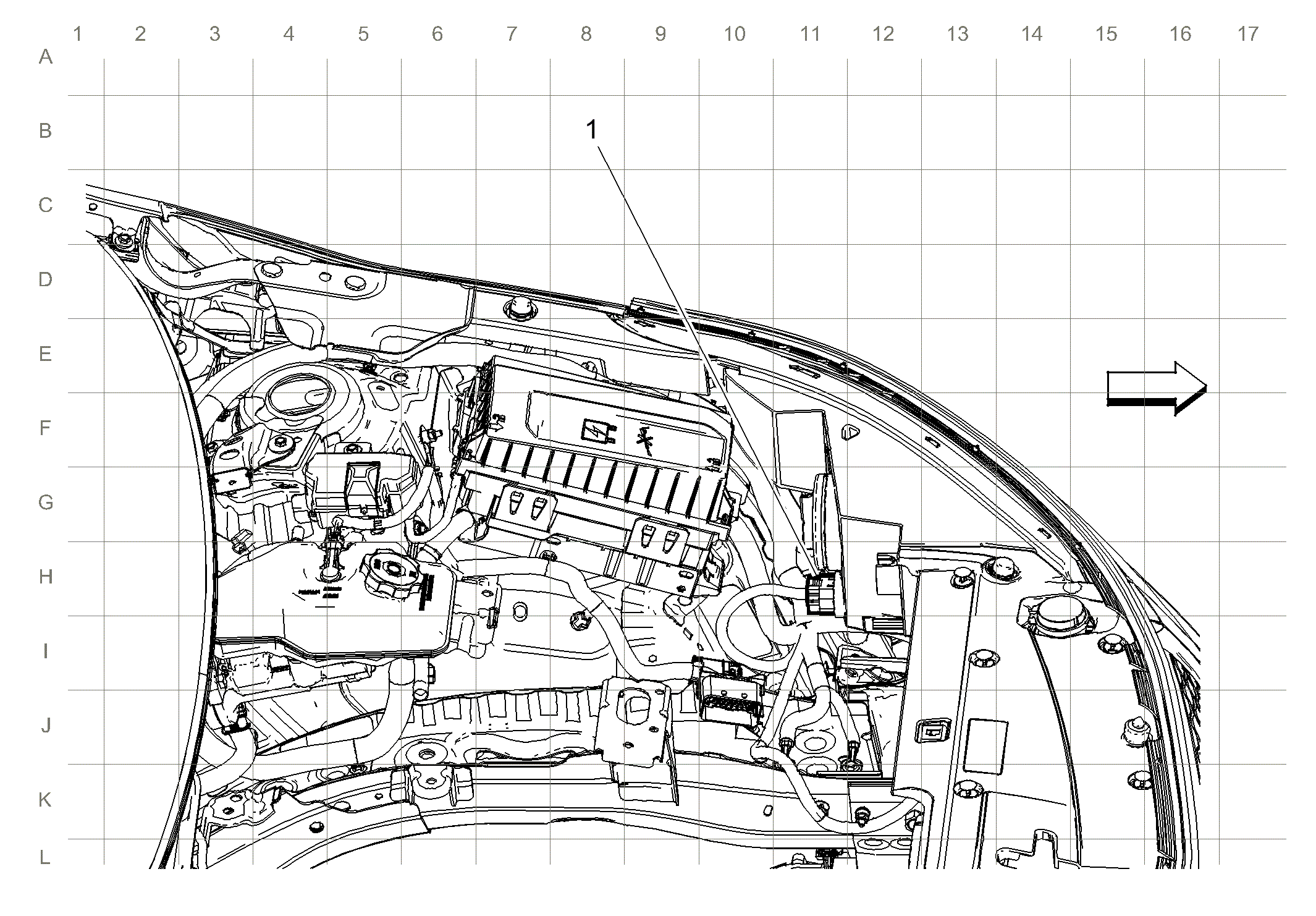

Fig 1: Left Side of Engine Compartment Harness Routing
GM2561495Courtesy of GENERAL MOTORS COMPANY
Items
1:  X110 X110 Forward Lamp Harness to Left Headlamp Assembly (EF7 or Z49)X110 Forward Lamp Harness to Left Headlamp Assembly (except EF7 or Z49)
