X110 Forward Lamp Harness to Left Headlamp Assembly (EF7 or Z49)
|
|
|

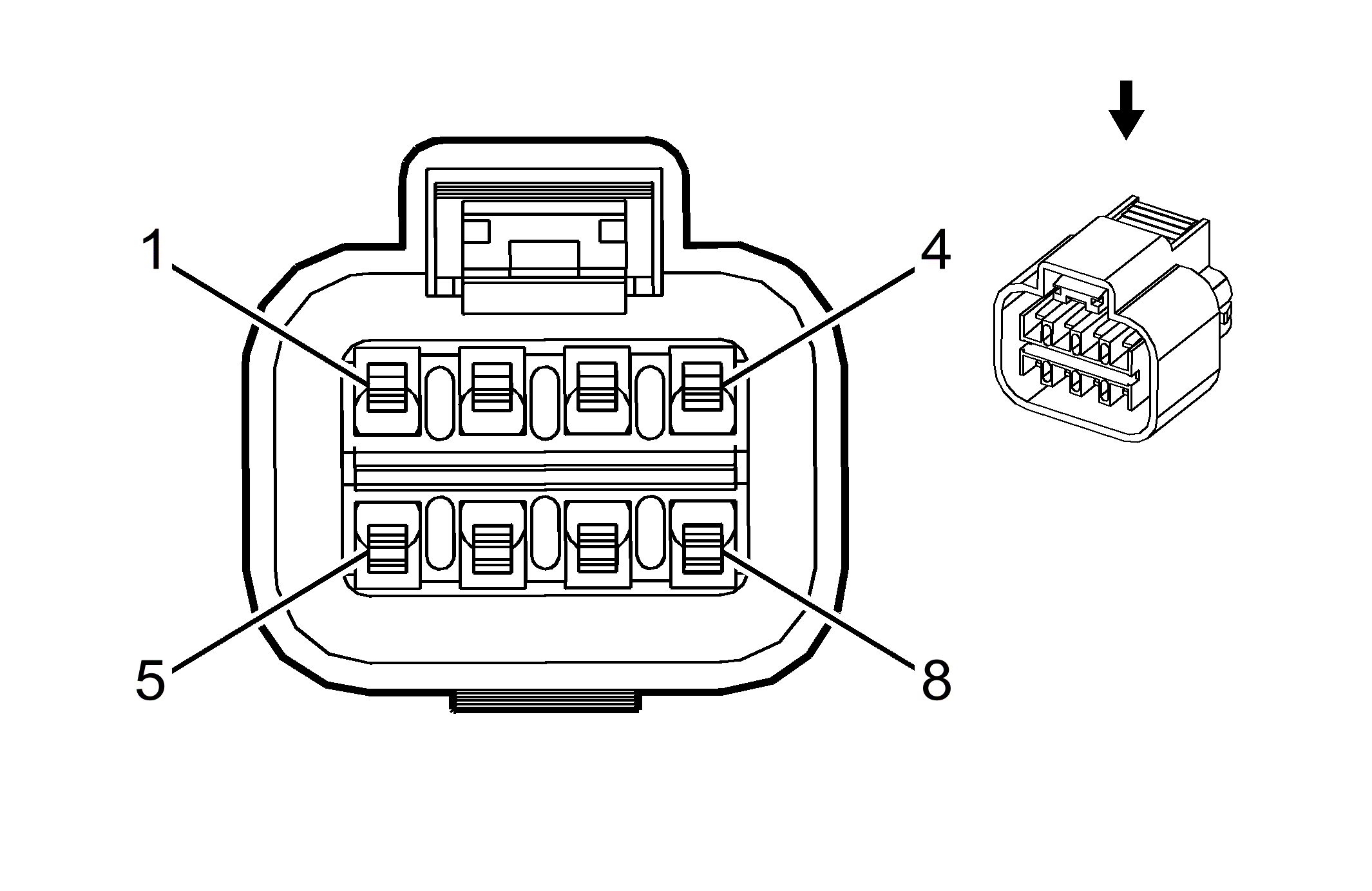

Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: PB625-08027
- Service Connector: 13577541
- Description: 8-Way F Sealed (BK)
|

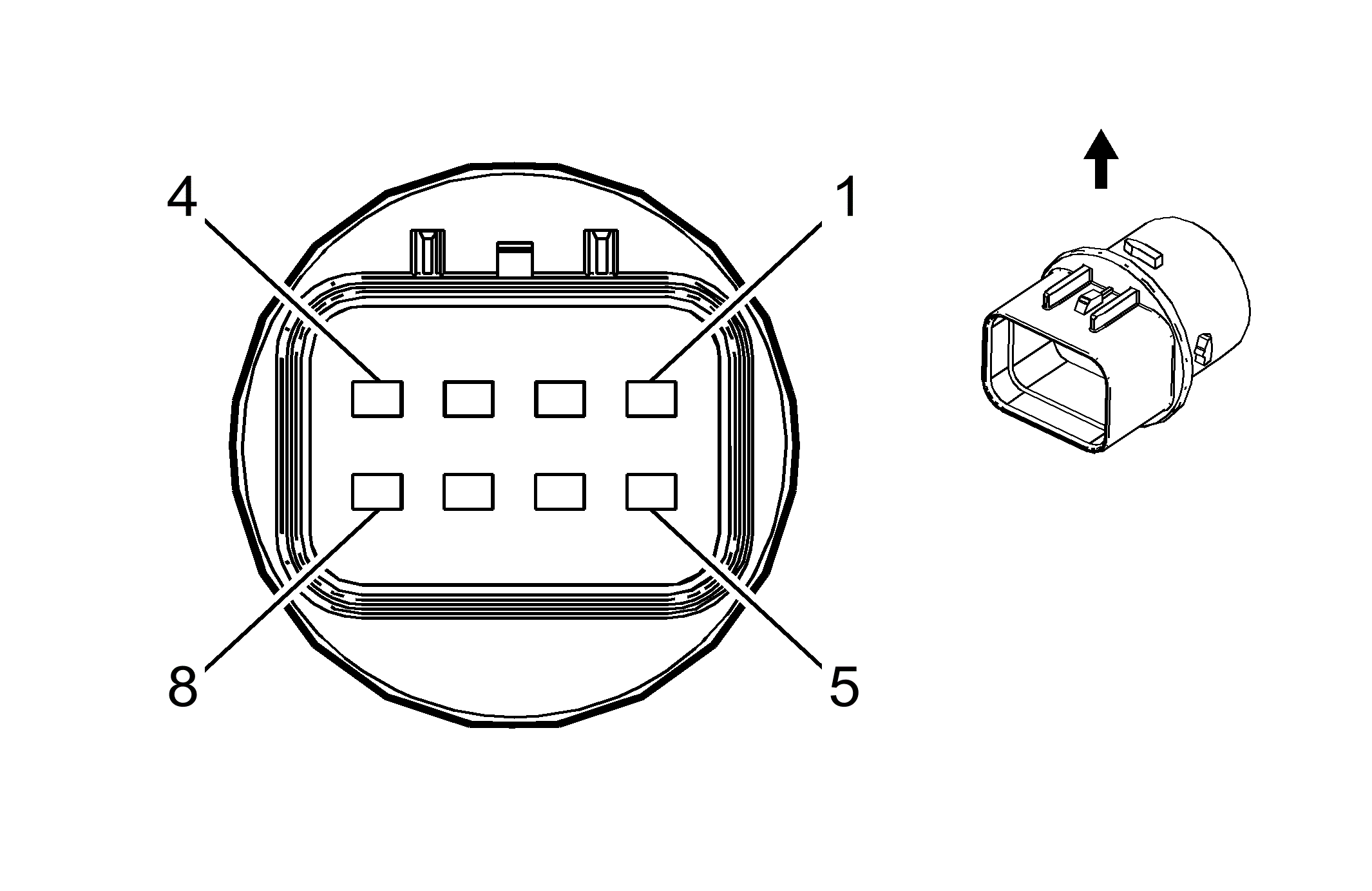

Connector Part Information
- Harness Type: Left Headlamp
- OEM Connector: Not Available
- Service Connector: Service by Harness - See Part Catalog
- Description: 8-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Connector Assembly - 13577541 |
J-35616-33 (YE) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
Service by Harness - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
X110 Forward Lamp Harness to Left Headlamp Assembly (EF7 or Z49)
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
1 |
YE |
712 |
I |
- |
Left Headlamp Low Beam Supply Voltage |
1 |
1 |
YE |
712 |
II |
- |
| 2 |
0.5 |
GY/L-BU |
7538 |
I |
- |
Left Front DRL Supply Voltage |
2 |
0.5 |
GY/L-BU |
7538 |
II |
- |
| 3 |
0.5 |
WH |
711 |
I |
- |
Left Headlamp High Beam Supply Voltage |
3 |
0.5 |
WH |
711 |
II |
- |
| 4 |
1 |
BK |
1150 |
I |
- |
Ground |
4 |
1 |
BK |
1150 |
II |
- |
| 5 |
1 |
BK |
1150 |
I |
- |
Ground |
5 |
1 |
BK |
1150 |
II |
- |
| 6-8 |
- |
- |
- |
- |
- |
Not Occupied |
6-8 |
- |
- |
- |
- |
- |
