Wiring Systems And Power Management - Wiring Schematic Diagrams And Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Harness Routing Views
>>
Left Rear of Vehicle Harness Routing
Left Rear of Vehicle Harness Routing

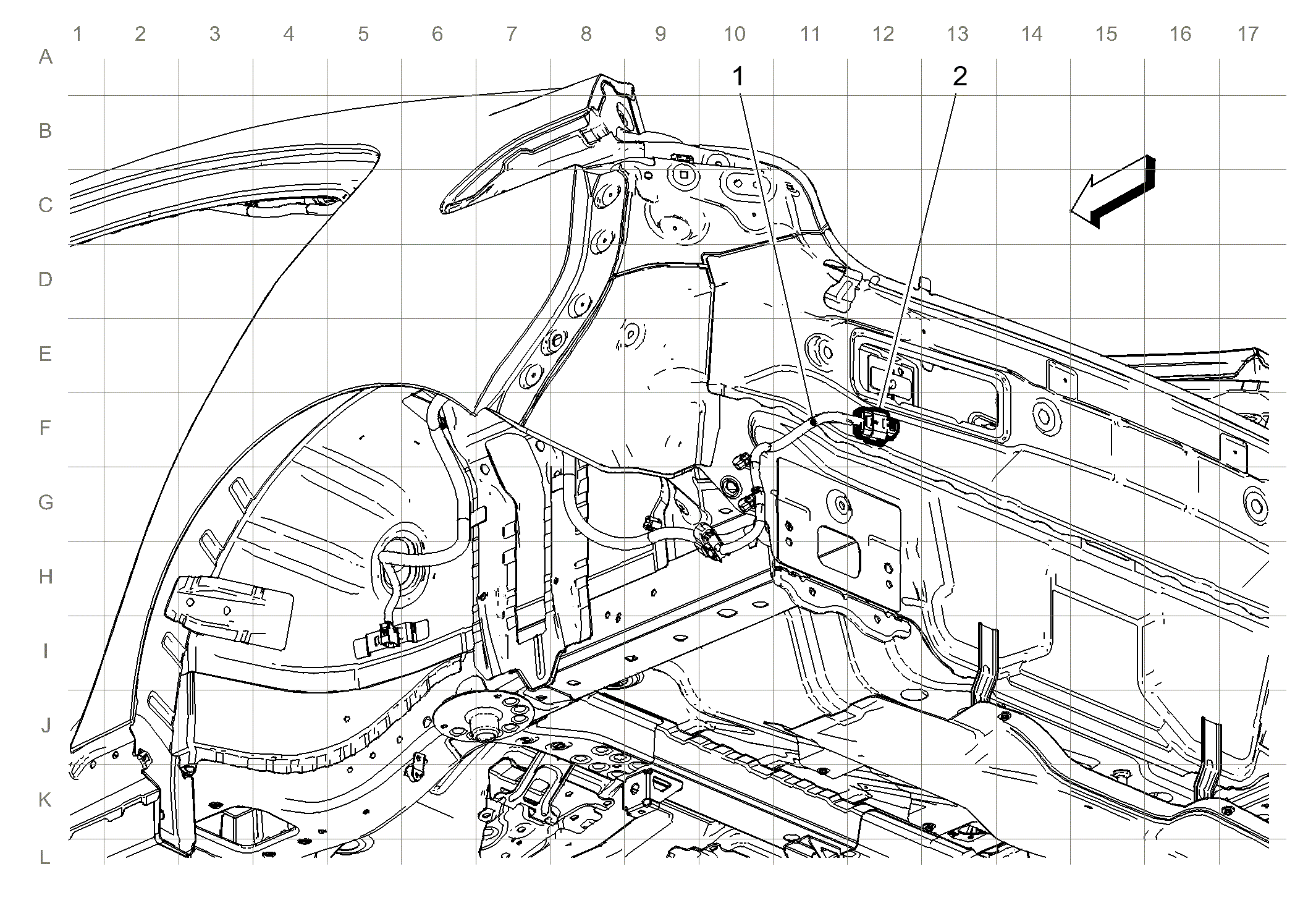

Fig 1: Left Rear Of Vehicle Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1:
J450
2:
X450 (UD5)
X450 Body Harness to Rear Fascia Harness (UD5)
