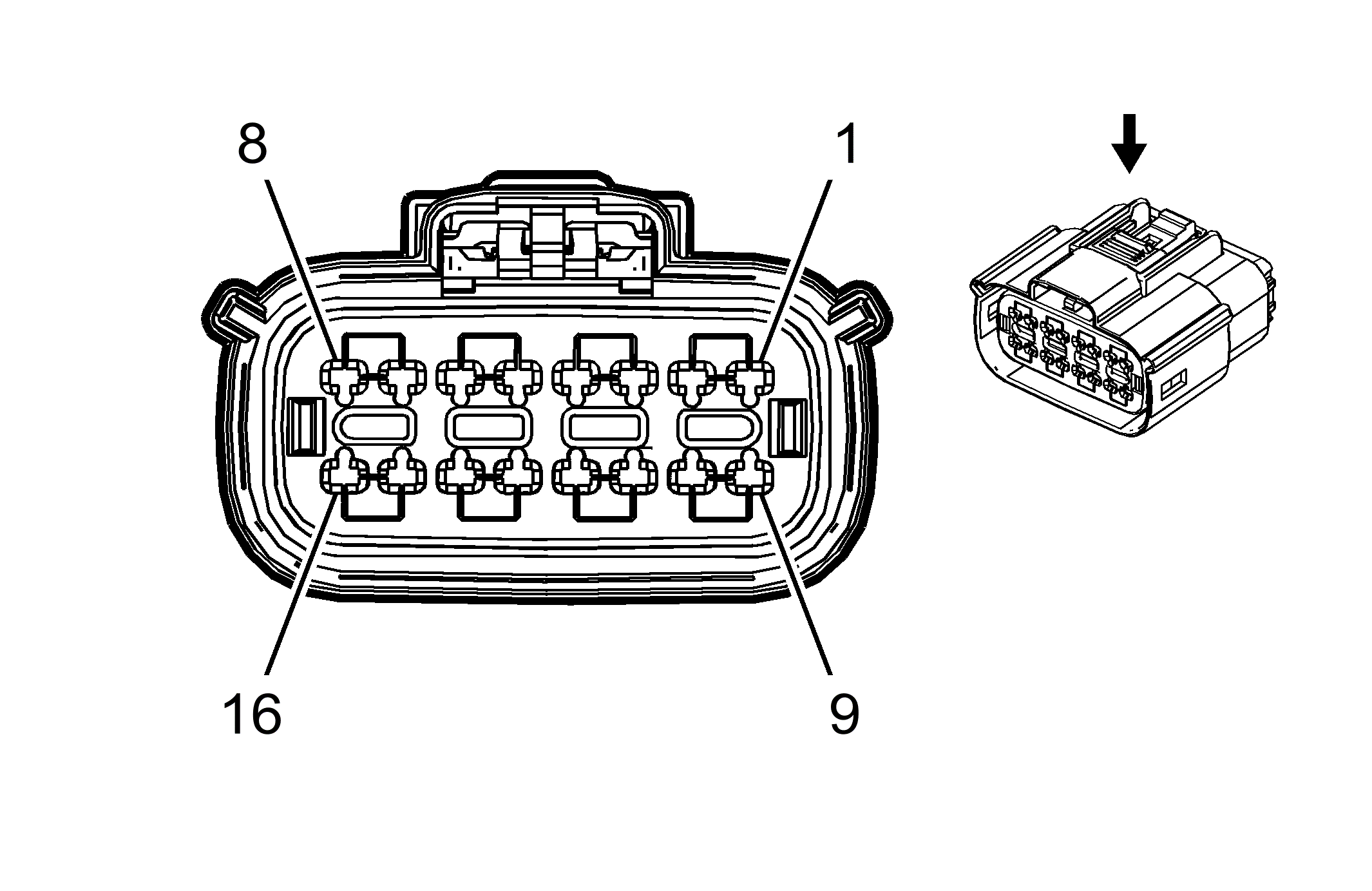

X450 Body Harness to Rear Fascia Harness (UD5)
|
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 54241634N
- Service Connector: 13577516
- Description: 16-Way F (BK)
|
Connector Part Information
- Harness Type: Rear Fascia
- OEM Connector: 54241610
- Service Connector: Service by Harness - See Part Catalog
- Description: 16-Way M (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
19303559 |
J-35616-35 (VT) |
J-38125-36 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
Not Available |
J-35616-35 (VT) |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
X450 Body Harness to Rear Fascia Harness (UD5)
| Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
Function |
Pin |
Size |
Color |
Circuit |
Terminal Type ID |
Option |
| 1 |
0.5 |
L-GN/WH |
1324 |
I |
- |
Backup Lamp Supply Voltage |
1 |
0.5 |
L-GN/WH |
1324 |
II |
- |
| 2 |
0.5 |
L-GN/YE |
6846 |
I |
- |
Rear License Lamp Supply Voltage |
2 |
0.5 |
L-GN/YE |
6846 |
II |
- |
| 3 |
0.5 |
VT/L-GN |
439 |
I |
- |
Run/Crank Ignition 1 Voltage |
3 |
0.5 |
VT/L-GN |
439 |
II |
- |
| 4 |
0.5 |
RD/VT |
5974 |
I |
- |
Park Assist Sensor Supply Voltage Park |
4 |
0.5 |
RD/VT |
5974 |
II |
- |
| 5 |
0.5 |
YE |
2375 |
I |
- |
Left Rear Corner Object Sensor Signal |
5 |
0.5 |
YE |
2375 |
II |
- |
| 6 |
0.5 |
YE/L-BU |
2376 |
I |
- |
Left Rear Middle Object Sensor Signal |
6 |
0.5 |
YE/L-BU |
2376 |
II |
- |
| 7 |
0.5 |
YE/WH |
2377 |
I |
- |
Right Rear Middle Object Sensor Signal |
7 |
0.5 |
YE/WH |
2377 |
II |
- |
| 8 |
- |
- |
- |
- |
- |
Not Occupied |
8 |
- |
- |
- |
- |
- |
| 9 |
0.5 |
BK/GY |
2379 |
I |
- |
Low Reference |
9 |
0.5 |
BK/GY |
2379 |
II |
- |
| 10 |
0.5 |
BK |
6974 |
I |
- |
Camera Drain Wire |
10 |
0.5 |
BK |
6974 |
II |
- |
| 11 |
0.5 |
GY/YE |
6972 |
I |
- |
Camera Signal #2 + |
11 |
0.5 |
GY/YE |
6972 |
II |
- |
| 12 |
0.5 |
WH/L-BU |
6973 |
I |
- |
Camera Signal #2 |
12 |
0.5 |
WH/L-BU |
6973 |
II |
- |
| 13 |
0.5 |
YE/GY |
122 |
I |
- |
Rear Fog Lamp Supply Voltage |
13 |
0.5 |
YE/GY |
122 |
II |
- |
| 14 |
0.5 |
BK |
850 |
I |
- |
Ground |
14 |
0.5 |
BK |
850 |
II |
- |
| 15 |
0.5 |
BK |
650 |
I |
- |
Ground |
15 |
0.5 |
BK |
650 |
II |
- |
| 16 |
0.5 |
YE/VT |
2378 |
I |
- |
Right Rear Corner Object Sensor Signal |
16 |
0.5 |
YE/VT |
2378 |
II |
- |
