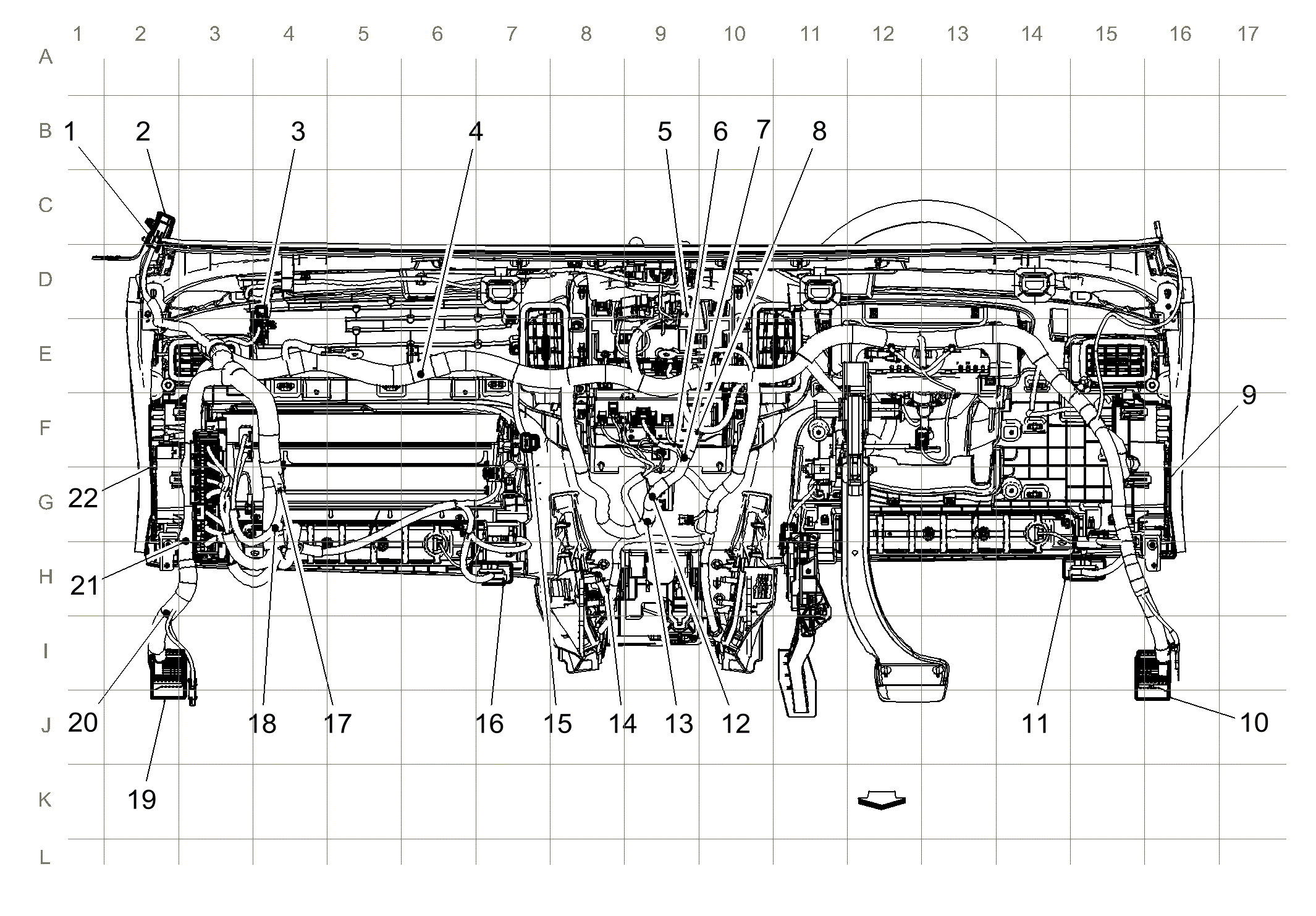

| 1:
X326 X326 Headliner Harness to Instrument Panel Harness |
| 2:
X325 X325 Headliner Harness to Instrument Panel Harness |
| 3:
X250 X250 Instrument Panel Top Pad Harness to Instrument Panel Harness |
| 4:
J221 |
| 5:
J205 |
| 6:
J206 |
| 7:
J210 |
| 8:
J209 |
| 9:
X51L Fuse Block - Instrument Panel Left X51L Fuse Block - Instrument Panel Left Wire Entry |
| 10:
X225 X225 Instrument Panel Harness to Body Harness |
| 11:
X84 Data Link Connector X84 Data Link Connector |
| 12:
J208 |
| 13:
J207 |
| 14:
J204 |
| 15:
X252 X252 Instrument Panel Harness to HVAC Harness |
| 16:
X84B Auxiliary Data Connector X84B Auxiliary Data Connector |
| 17:
J227 |
| 18:
J228 |
| 19:
X275 X275 Instrument Panel Harness to Body Harness |
| 20:
J224 |
| 21:
J226 |
| 22:
X51R Fuse Block - Instrument Panel Right X51R Fuse Block - Instrument Panel Right Wire Entry |
