Front of Engine Compartment Harness Routing

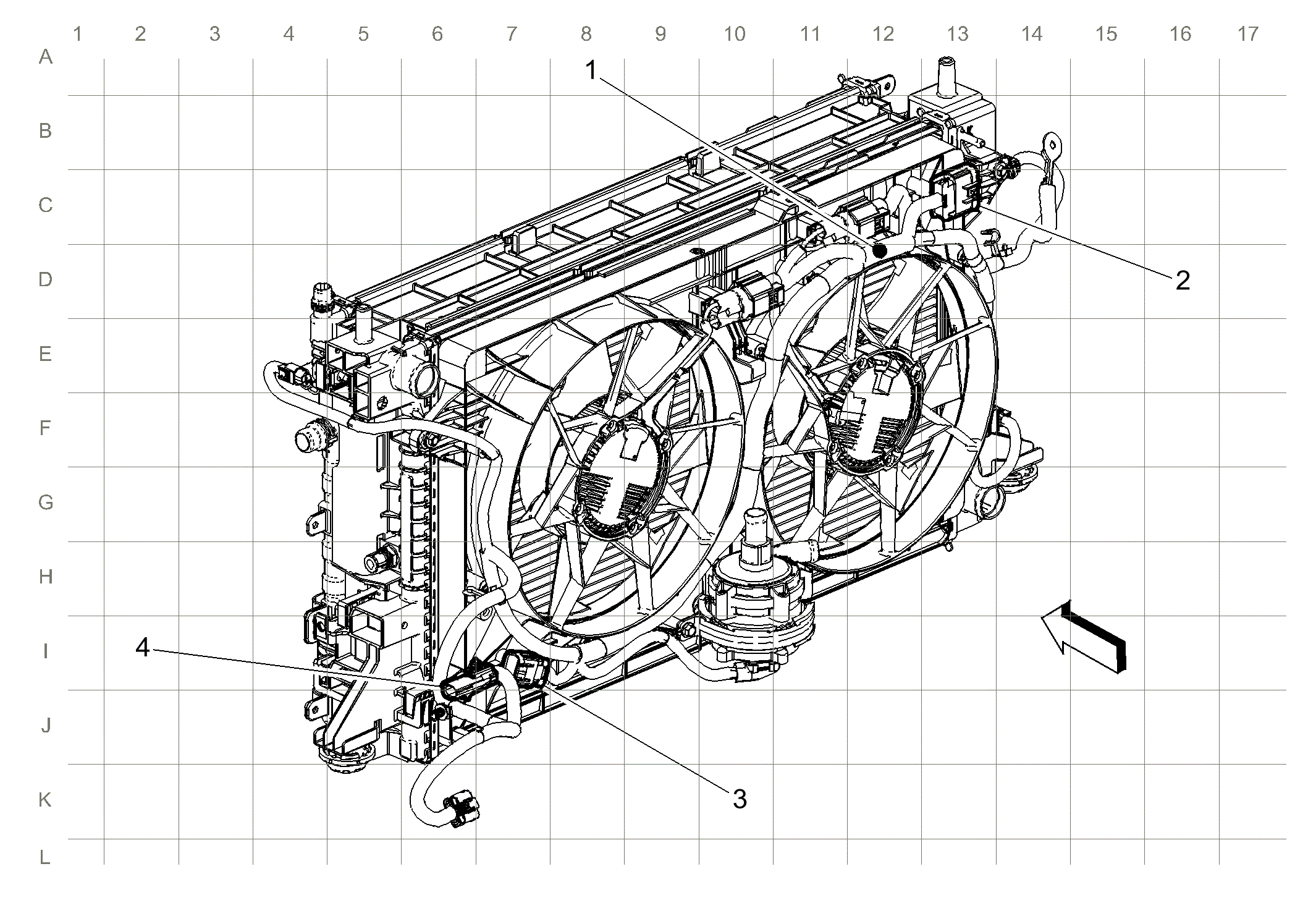

Fig 1: Front of Engine Compartment Harness Routing
GM2561494Courtesy of GENERAL MOTORS COMPANY
Items
1:  J110
2:  X103 X103 Forward Lamp Harness to Cooling Fan Harness
3:  X102 X102 Engine Harness to Cooling Fan Harness
4:  X104 X104 Cooling Fans to Cooling Fan Harness
