Engine Harness Routing

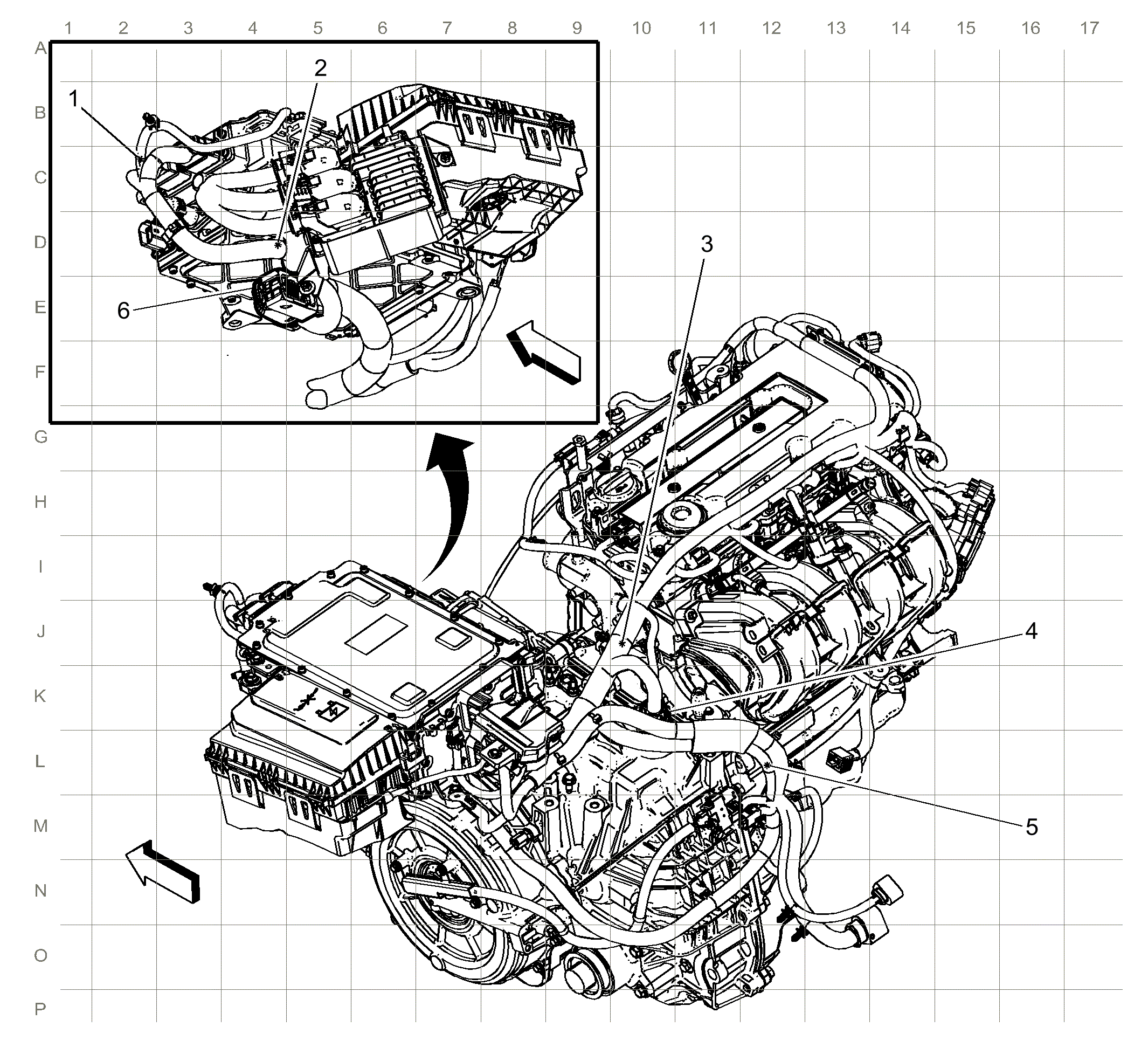

Fig 1: Engine Harness Routing
GM3665736Courtesy of GENERAL MOTORS COMPANY
Items
1:  J130
2:  J129
3:  J128
4:  X175 X175 Engine Harness to Transmission Harness
5:  J125
6:  X190 X190 Engine Harness to Body Harness
