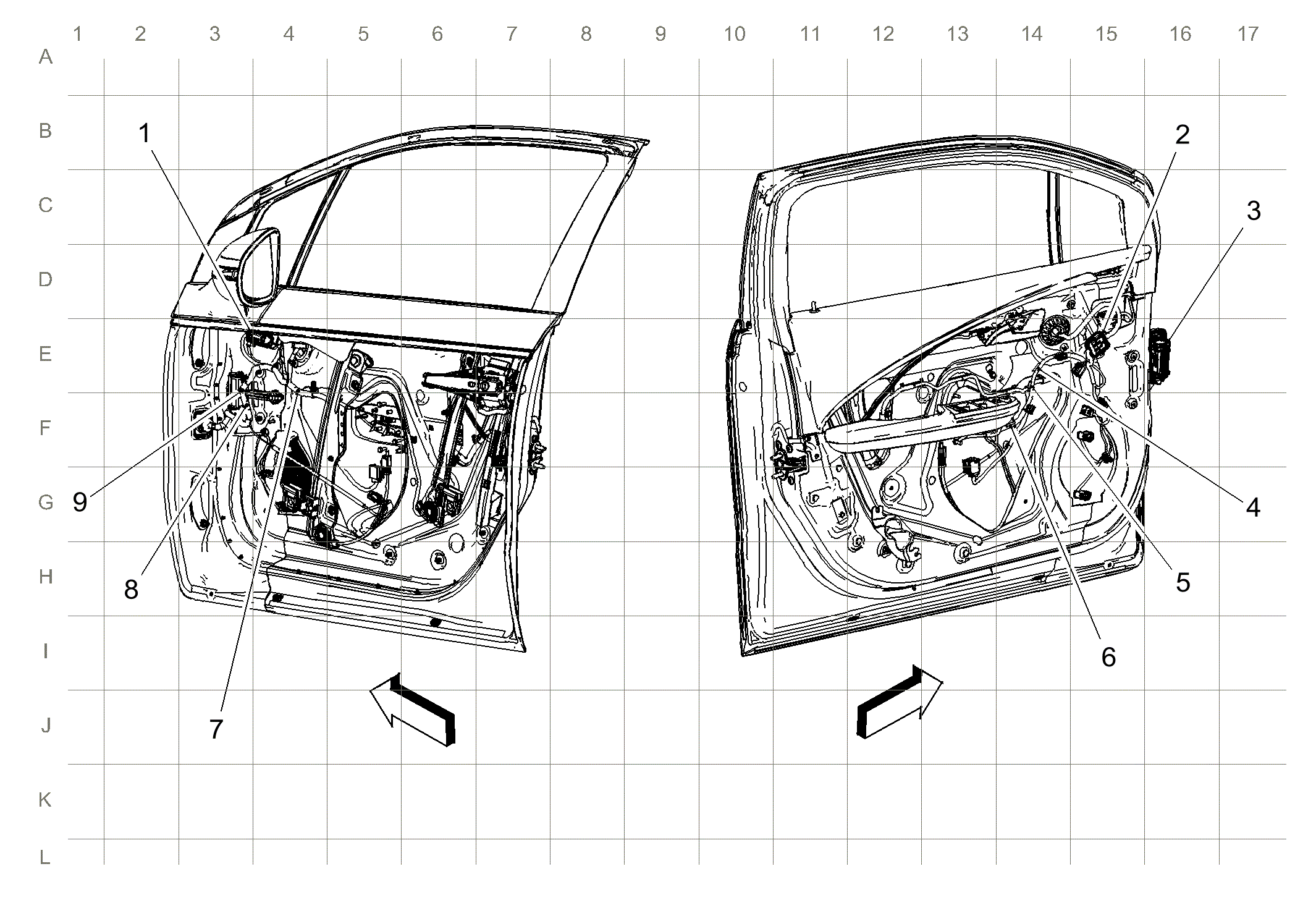

Driver Door Harness Routing
| Items |
|---|
| 1: X510 X510 Outside Rearview Mirror - Driver to Driver Door Harness |
| 2: X505 X505 Driver Door Harness to Driver Door Trim Harness |
| 3: X500 X500 Driver Door Harness to Body Harness |
| 4: J517 |
| 5: J518 |
| 6: J519 |
| 7: J516 |
| 8: J514 |
| 9: J515 |
