X505 Driver Door Harness to Driver Door Trim Harness

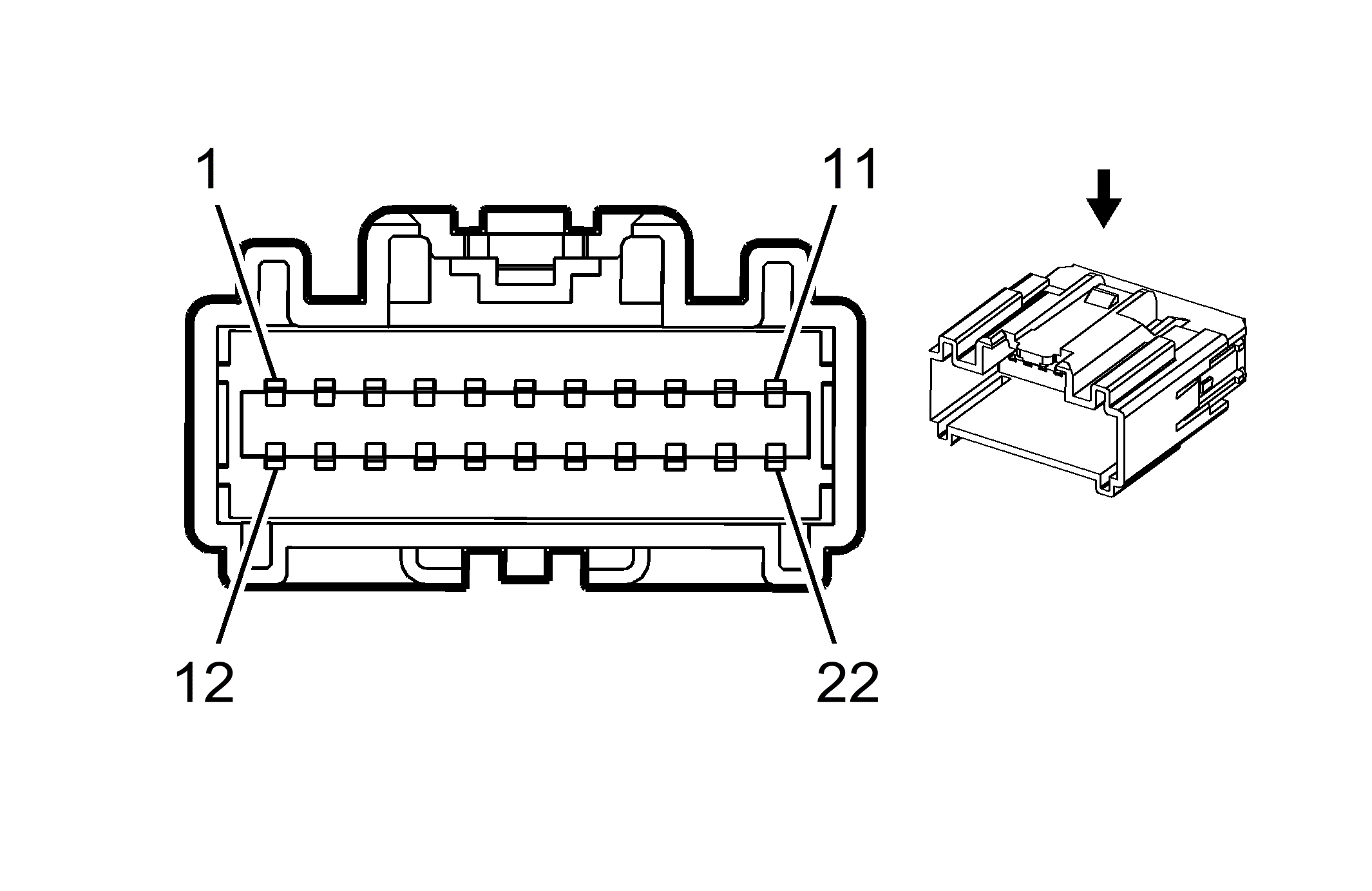

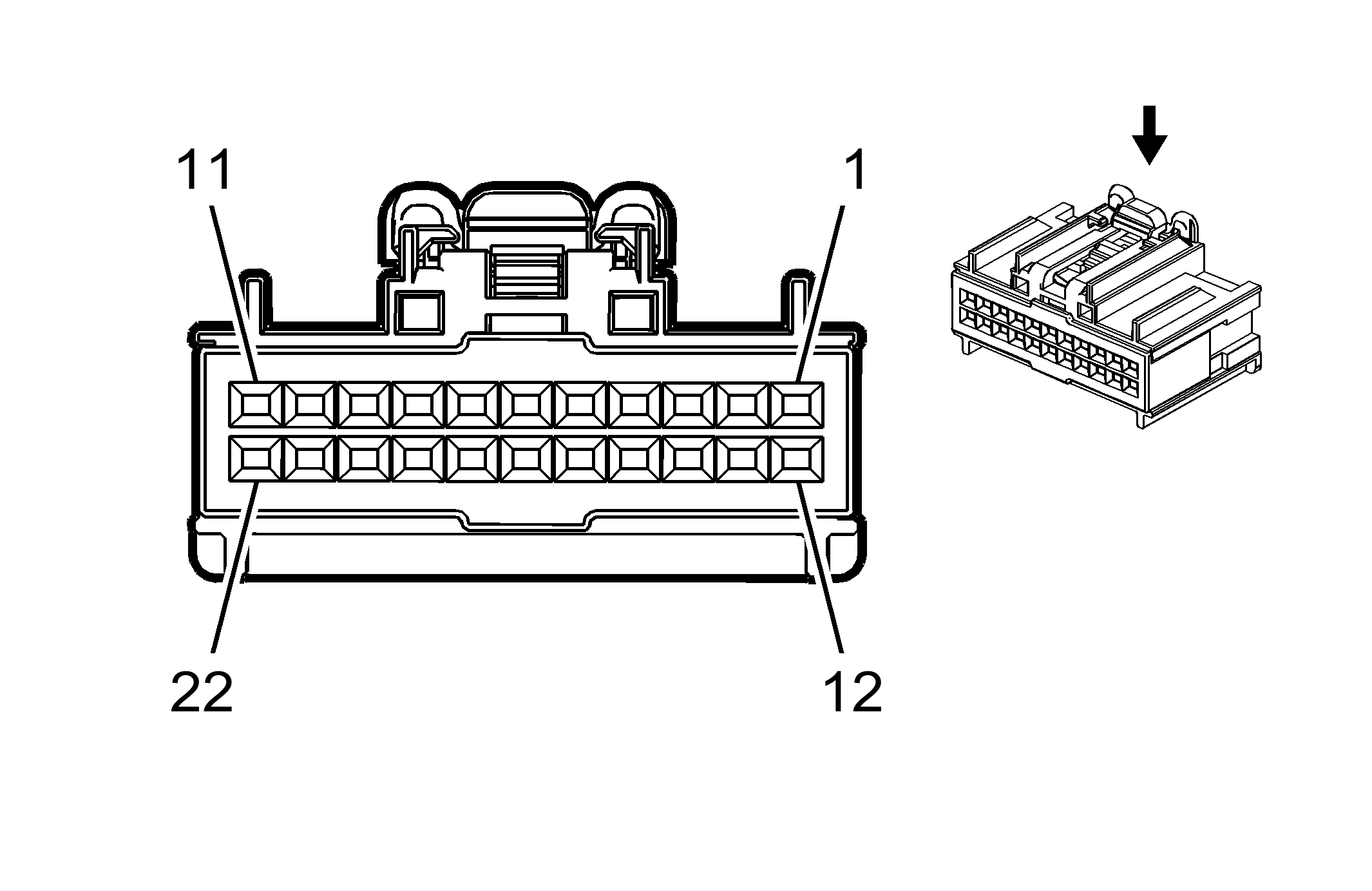

Connector Part Information Harness Type: Driver Door OEM Connector: 0-1420011-3 Service Connector: Service by Harness - See Part Catalog Description: 22-Way F GET 0.64 Series (NA)	Connector Part Information Harness Type: Driver Door Trim OEM Connector: 2-1419158-6 Service Connector: Service by Harness - See Part Catalog Description: 22-Way M GET 0.64 Series (NA)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	Not Available	J-35616-35 (VT)	Not Available	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Terminal Type ID	Option	Function	Pin	Size	Color	Circuit	Terminal Type ID	Option
1	0.5	RD/WH	4740	I	-	Battery Positive Voltage	1	0.35	RD/WH	4740	I	-
2	0.35	GY/VT	329	I	-	Left Mirror Motor Supply Voltage	2	0.35	GY/VT	329	I	-
3	0.35	YE/L-GN	88	I	-	Left Mirror Motor Up Control	3	0.35	YE/L-GN	88	I	-
4	0.35	L-GN	81	I	-	Left Mirror Motor Right Control	4	0.35	L-GN	81	I	-
5	0.5	YE/WH	330	I	-	Right Mirror Motor Supply Voltage	5	0.35	YE/WH	330	I	-
6	0.5	BN/WH	1498	I	-	Right Mirror Motor Up Control	6	0.35	BN/WH	1498	I	-
7	0.5	L-BU	881	I	-	Right Mirror Motor Right Control	7	0.35	L-BU	881	I	-
8-10	-	-	-	-	-	Not Occupied	8-10	-	-	-	-	-
11	0.5	YE	6817	I	-	LED Backlight Dimming Control	11	0.5	YE	6817	I	-
12	-	-	-	-	-	Not Occupied	12	-	-	-	-	-
13	0.5	GY/WH	1447	I	-	Fuel Door Release Switch Signal	13	0.5	GY/WH	1447	I	-
14	0.5	BN/WH	3827	I	-	Refuel Request Switch Signal	14	0.5	BN/WH	3827	I	-
15	0.35	L-GN	3381	I	-	Power Window Switch Driver Express Signal	15	0.35	L-GN	3381	I	-
16	0.35	GY	3380	I	-	Power Window Switch Driver Down Signal	16	0.35	GY	3380	I	-
17	0.35	L-GN/WH	3379	I	-	Power Window Switch Driver Up Signal	17	0.35	L-GN/WH	3379	I	-
18	0.5	L-GN/YE	6134	I	-	Linear Interconnect Network Bus 3	18	0.5	L-GN/YE	6134	I	-
19	-	-	-	-	-	Not Occupied	19	-	-	-	-	-
20	0.35 0.35	BK BK	2050 1550	I	RHD LHD	Ground Ground	20	0.35 0.35	BK BK	1550 1550	I	- RHD
21	0.35	BN/L-GN	3270	I	-	Driver Door Lock Motor Status Control	21	0.35	BN/L-GN	3270	I	-
22	0.35	BN/WH	1124	I	-	Door Lock Key Switch Unlock Signal	22	0.35	BN/WH	1124	I	-
