Wiring Systems And Power Management - Wiring Schematic Diagrams And Wiring Harness Routing Diagrams
>>
Wiring Harness Routing Views
>>
Harness Routing Views
>>
Center Console Harness Routing
Center Console Harness Routing

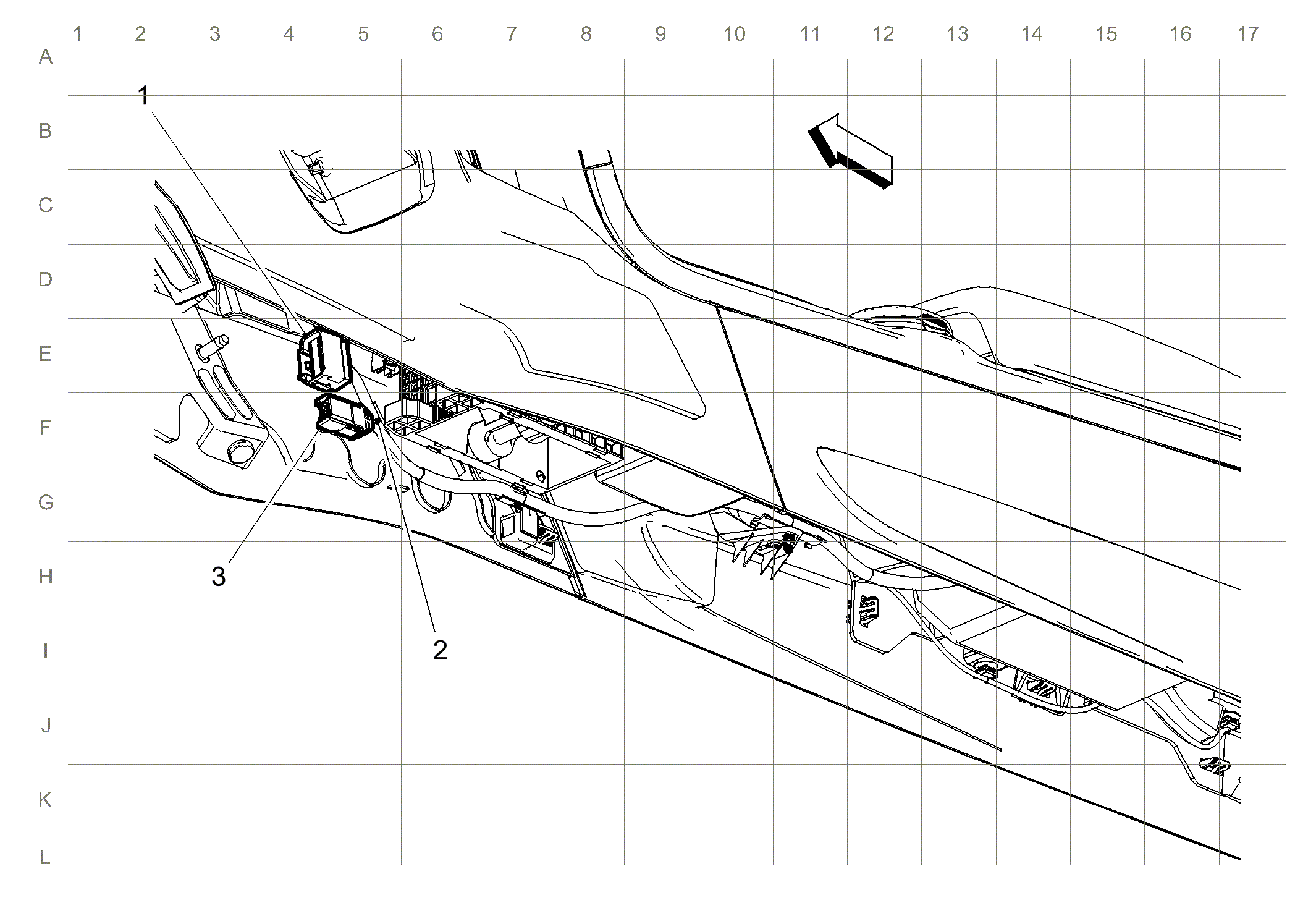

Fig 1: Center Console Harness Routing
Courtesy of GENERAL MOTORS COMPANY
Items
1:
X315
X315 Console Harness to Instrument Panel Harness
2:
X316
3:
J317
