Luggage Compartment Components

Items
1: K27 Fuel Pump Control Module K27 Fuel Pump Control Module
2: K84 Keyless Entry Control Module K84 Keyless Entry Control Module X1 K84 Keyless Entry Control Module X2 K84 Keyless Entry Control Module X4
3: T3 Audio Amplifier T3 Audio Amplifier X1 (UQA)T3 Audio Amplifier X2 (UQA)T3 Audio Amplifier X3 (UQA)
4: G38 14V Power Module Cooling Fan G38 14V Power Module Cooling Fan
5: B18 Battery Current Sensor B18 Battery Current Sensor
6: X50D Fuse Block - Battery X50D Fuse Block - Battery X1 X50D Fuse Block - Battery X2 X50D Fuse Block - Battery X3 X50D Fuse Block - Battery X5 X50D Fuse Block - Battery X6
7: K41 Front and Rear Parking Assist Control Module (UD5) K41 Parking Assist Control Module X1 (UD7 or UDF)K41 Parking Assist Control Module X2 (UD7 or UDF)K41 Parking Assist Control Module X3 (UD7 or UDF)
8: E33 Cargo Lamp E33 Cargo Lamp
9: X53A Fuse Block - Rear Body X53A Fuse Block - Rear Body Wire Entry (Fuses)X53A Fuse Block - Rear Body Wire Entry (Relays)
10: C1 Battery
11: P19AC Speaker - Subwoofer P19AC Speaker - Subwoofer (UQA)
12: K1 14V Power Module K1 14V Power Module X1 K1 14V Power Module X2 K1 14V Power Module X3 K1 14V Power Module X4
13: A12 Digital Radio Receiver Control Module (U4D) A12 Digital Radio Receiver Control Module (U4D)

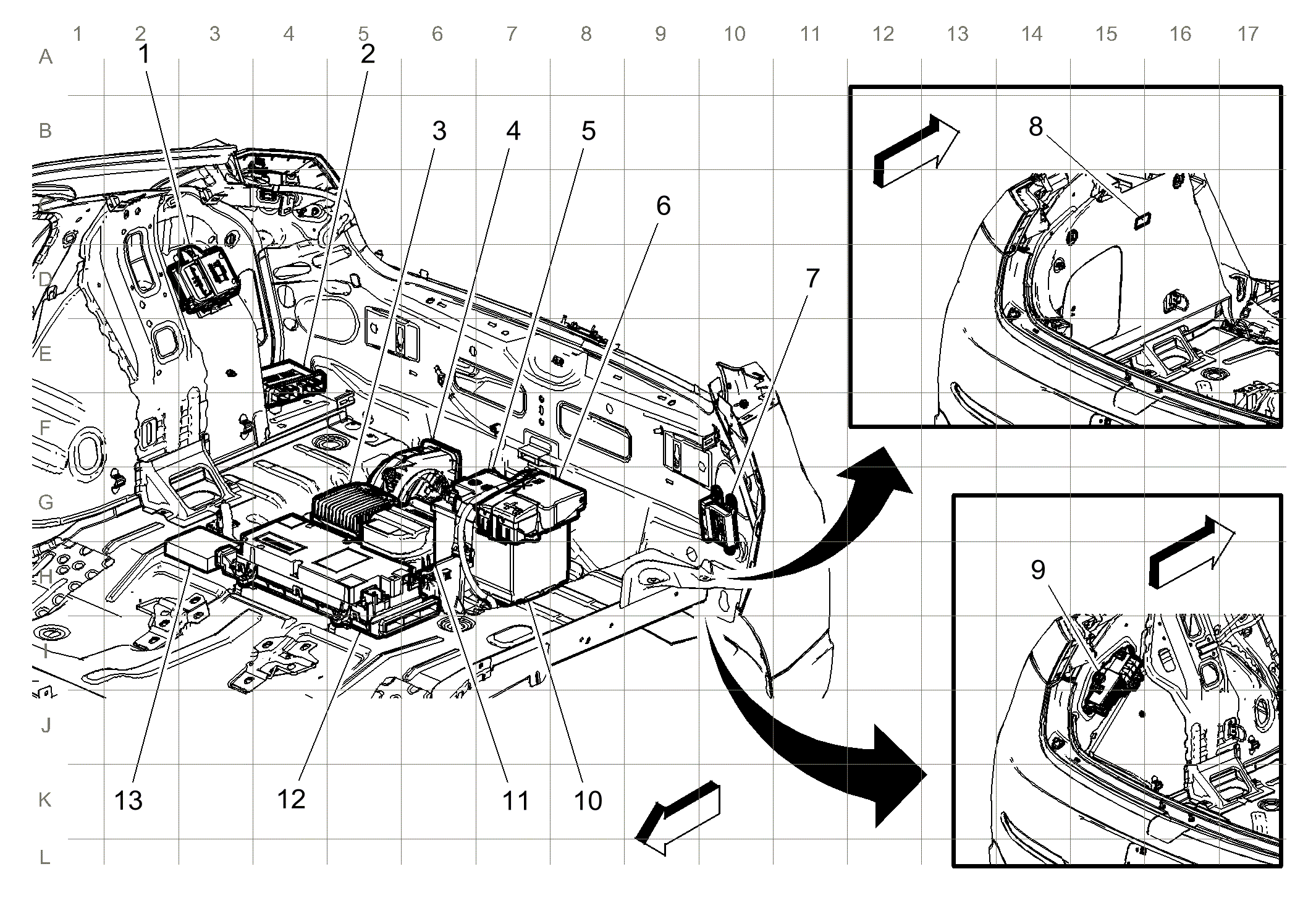

Fig 1: Luggage Compartment Components

Courtesy of GENERAL MOTORS COMPANY
