K1 14V Power Module X4
|
|
Connector Part Information
- Harness Type: Positive Battery Cable
- OEM Connector: AKZ32232
- Service Connector: Service by Component - See Part Catalog

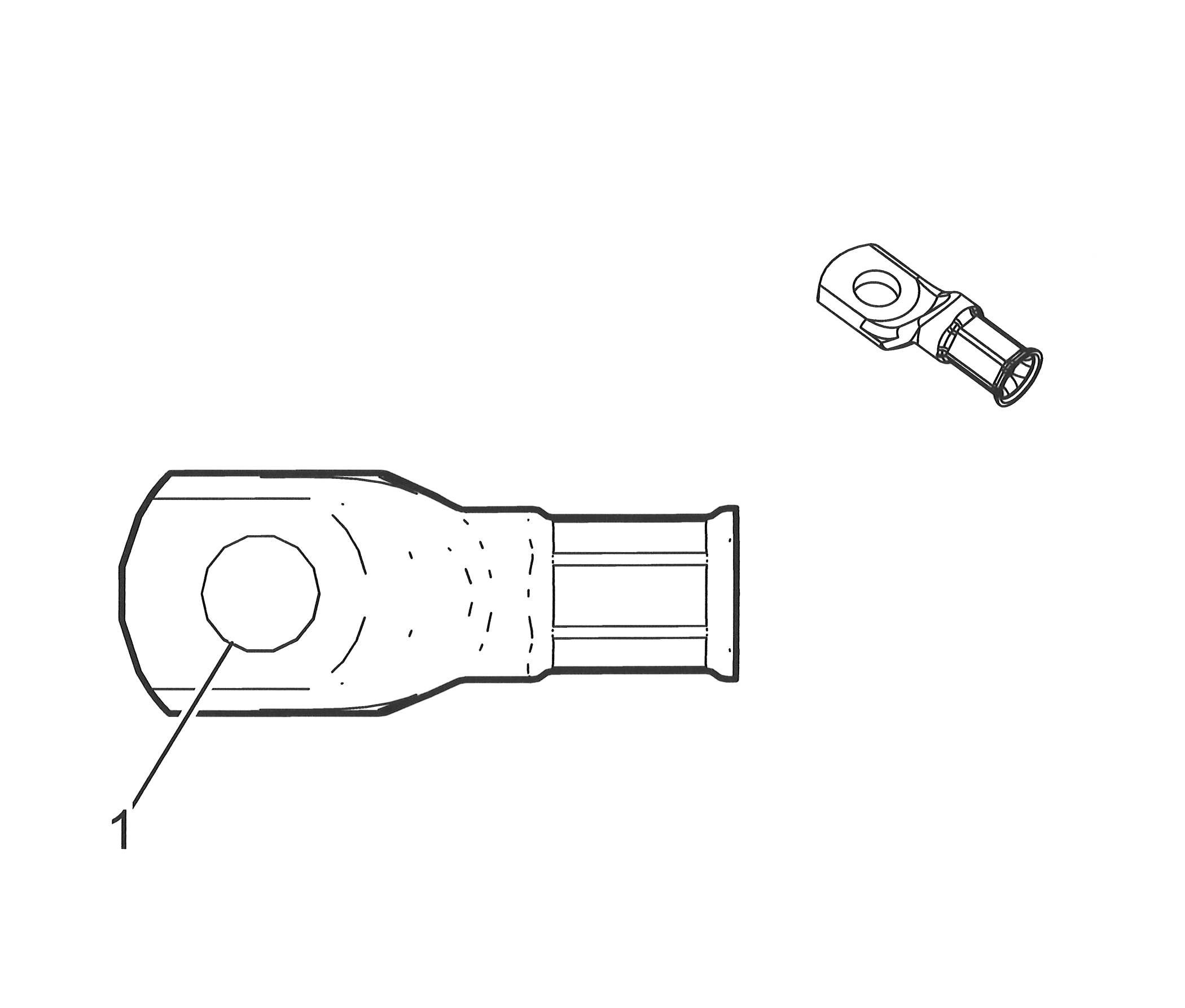

- Description: 1-Way Ring Terminal (NA)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Service by Component - See Part Catalog |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
Not Available |
K1 14V Power Module X4
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
20 |
RD/YE |
2 |
Battery 14V Power Supply |
I |
- |
