Horn Replacement

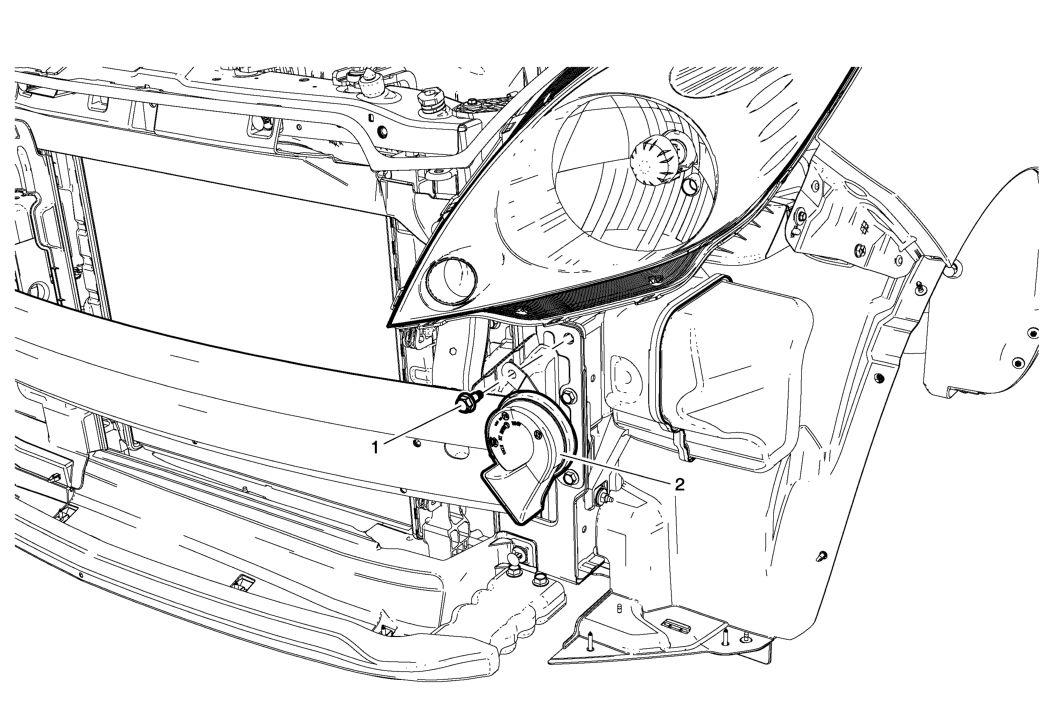

Fig 1: Horn Bolt

GM2309153

Courtesy of GENERAL MOTORS COMPANY

Horn Replacement

Callout

Component Name

Preliminary Procedure

Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the front wheel house liner. Refer to Front Wheelhouse Liner Replacement .
Remove the air cleaner resonator assembly. Refer to Air Cleaner Resonator Replacement .

1

Horn Bolt (Qty: 1)

CAUTION:

Refer to Fastener Caution .

Tighten
21 N.m (16 lb ft)

2

Horn
TIP: Disconnect electrical connectors.
