Front Seat Armrest Replacement

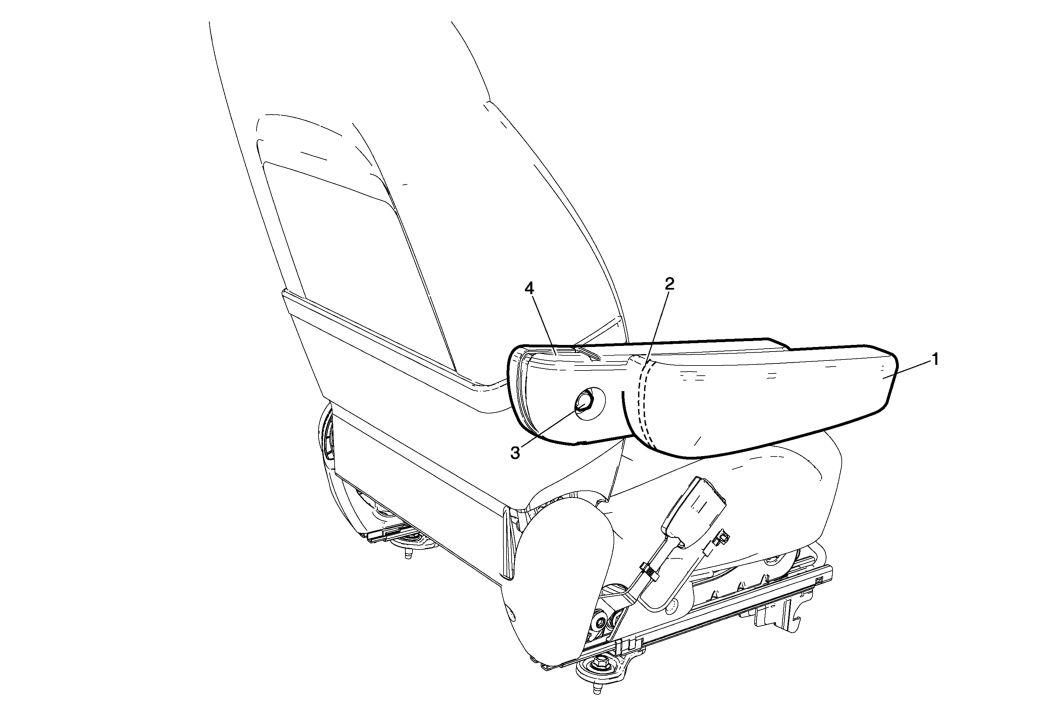

Fig 1: Front Seat Armrest Assembly
GM2309328Courtesy of GENERAL MOTORS COMPANY
Front Seat Armrest Replacement

Callout Component Name
1 Front Seat Armrest Cover
2 Front Seat Armrest Cover Zipper
Procedure
Open the zipper to access the front seat armrest mounting bolt.
3 Front Seat Armrest Mounting Bolt (Qty: 1)
CAUTION:

Refer to Fastener Caution .


Tighten
45 N.m (33 lb ft)
4 Front Seat Armrest Assembly
