Rear Bumper Fascia Replacement

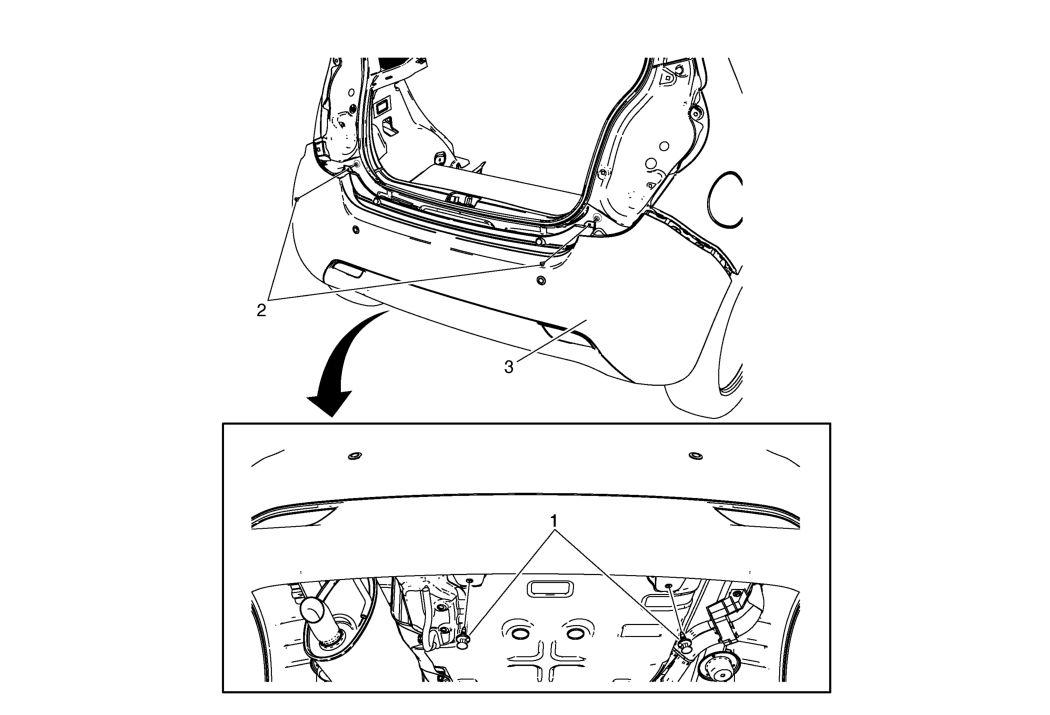

Fig 1: Rear Bumper Fascia
GM2754156Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Fascia Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the tail lamps. Refer to Tail Lamp Replacement .
  2. Remove the rear wheelhouse liner. Refer to Rear Wheelhouse Liner Replacement .
1 Rear Bumper Fascia Retainer (Qty: 2)
2 Rear Bumper Fascia Screw (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
1.8 (16 lb in)
3 Rear Bumper Fascia

Procedure

  1. Unclip from rear bumper fascia guides.
  2. Pull forward to remove the rear bumper fascia.
  3. Disconnect any electrical connectors.
  4. Transfer parts as needed.
