Tail Lamp Replacement

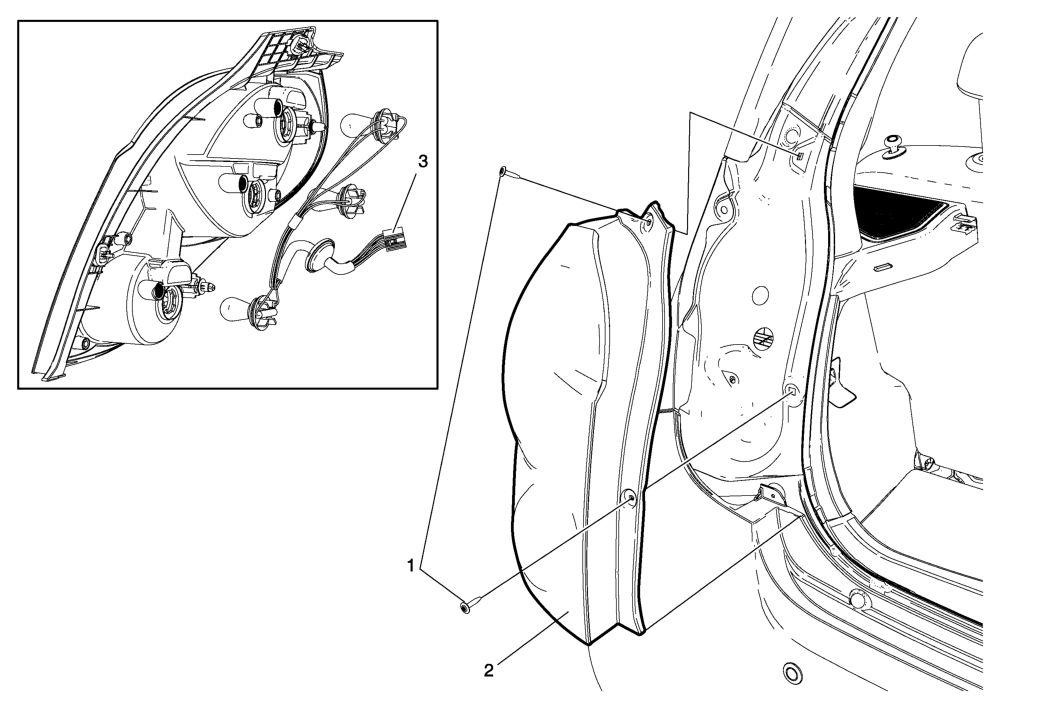

Fig 1: Tail Lamp

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Tail Lamp Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Tail Lamp Assembly Procedure Using a blunt tool, tap gently on the tail lamp studs before attempting to remove the tail lamp assembly from the lamp pocket. Pull the tail lamp assembly rearward. Disconnect the tail lamp bulbs assembly electrical connector.
3	Tail Lamp Wiring Harness and Bulb Assembly WARNING: Refer to Halogen Bulb Warning . TIP: Rotate the bulbs counterclockwise and remove from the tail lamp housing.

Callout

Component Name

Tail Lamp Screw (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Tail Lamp Assembly

Procedure

Using a blunt tool, tap gently on the tail lamp studs before attempting to remove the tail lamp assembly from the lamp pocket.
Pull the tail lamp assembly rearward.
Disconnect the tail lamp bulbs assembly electrical connector.

Tail Lamp Wiring Harness and Bulb Assembly

WARNING:

TIP: Rotate the bulbs counterclockwise and remove from the tail lamp housing.
