Windshield Washer Nozzle Hose Replacement

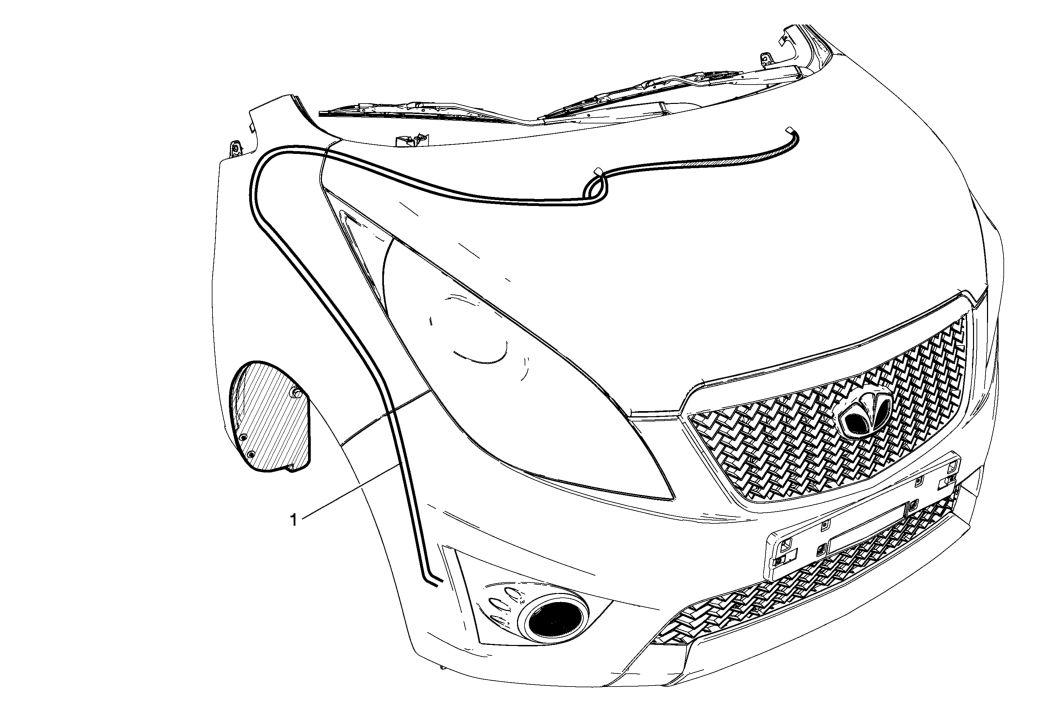

Fig 1: Windshield Washer Nozzle Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood insulator. Place a clean container under the front passenger side (RHD: driver side) near where the windshield washer nozzle and windshield washer pump hose will be disconnected. Remove the front wheelhouse liner to access the washer nozzle hose. Refer to Front Wheelhouse Liner Replacement . Recover all lost windshield washer solvent.
1	Windshield Washer Nozzle Hose TIP: Disconnect the washer hose from both hood mounted washer nozzles.

Callout

Component Name

Preliminary Procedures

Remove the hood insulator.
Place a clean container under the front passenger side (RHD: driver side) near where the windshield washer nozzle and windshield washer pump hose will be disconnected.
Remove the front wheelhouse liner to access the washer nozzle hose. Refer to Front Wheelhouse Liner Replacement .
Recover all lost windshield washer solvent.

Windshield Washer Nozzle Hose
TIP: Disconnect the washer hose from both hood mounted washer nozzles.
