Tail Lamp Bulb Replacement
Tail Lamp Bulb Replacement

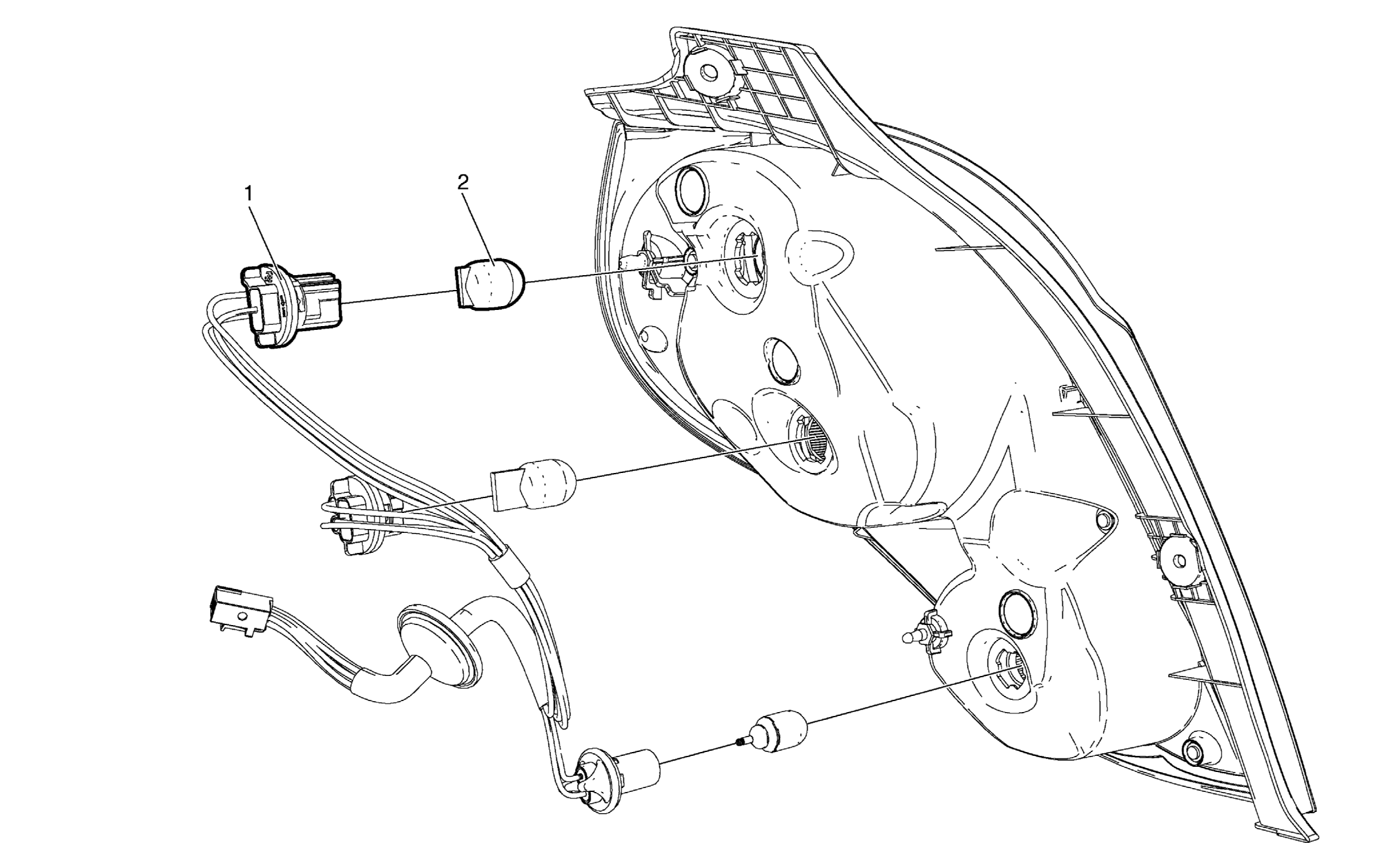

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tail lamp assembly. Refer to Tail Lamp Replacement . |
|
| 1 | Tail Lamp Bulb Harness Socket
WARNING:
Refer to Halogen Bulb Warning .
NOTE:
Rotate the bulb socket from the tail lamp housing. |
| 2 | Tail Lamp Bulb Procedure Pull the bulb straight from the lamp harness socket. |
