Front Fog Lamp Replacement (Projection)

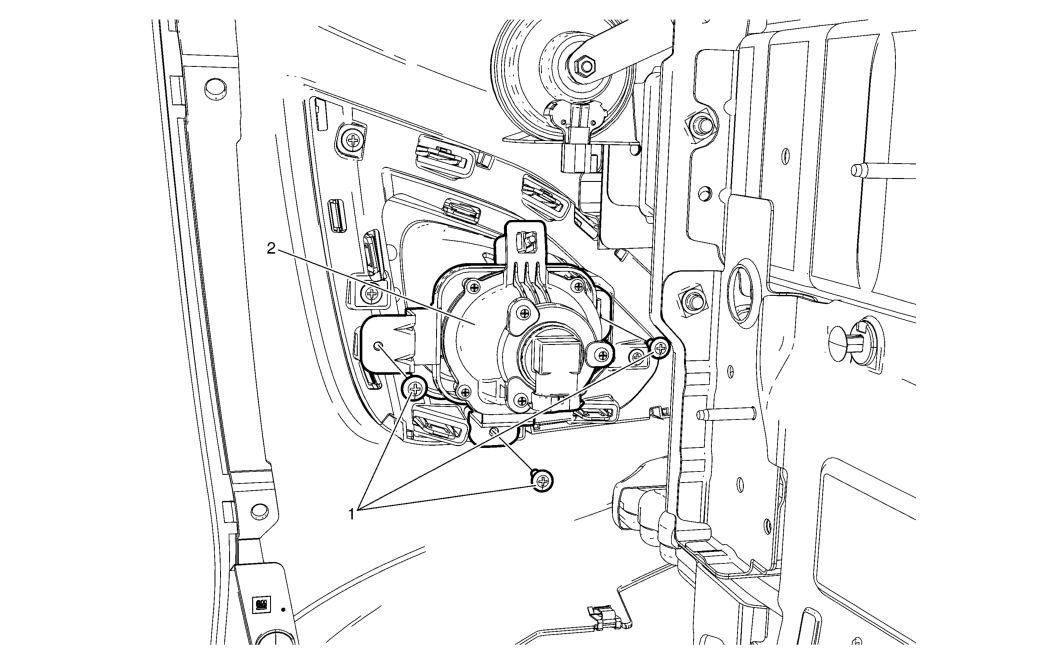

Fig 1: Front Fog Lamp Assembly
GM2877110Courtesy of GENERAL MOTORS COMPANY
Front Fog Lamp Replacement (Projection)

Callout Component Name

Preliminary Procedures

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  3. Disconnect fog lamp bulb socket electrical connector.
1 Front Fog Lamp Screw (Qty: 3)
2 Front Fog Lamp Assembly

Procedure

  1. Remove the lamp assembly from the fog lamp bracket.
  2. Aim the fog lamp after installation. Refer to Fog Lamp Aiming .
