Engine Harness Routing (LL0 with MX2)

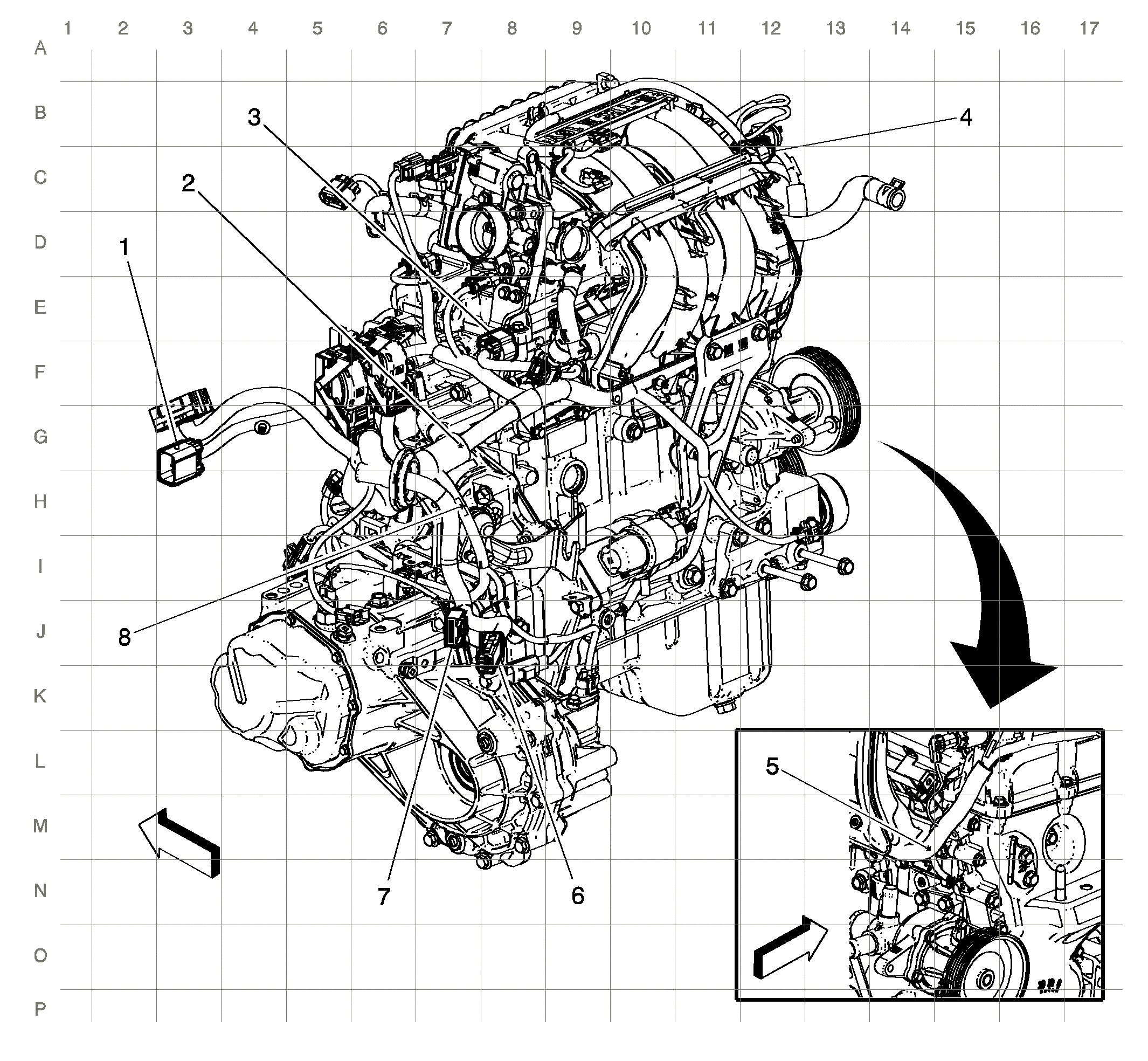

Fig 1: Engine Harness Routing (LL0 with MX2)
GM3276579Courtesy of GENERAL MOTORS COMPANY
Items
1:  X111 X111 Forward Lamp Harness to Engine Harness
2:  J160
3:  X160 X160 Engine Harness to Fuel Injector Harness
4:  X170 X170 Engine Harness to Ignition Coils Harness
5:  J170
6:  X214 X214 Engine Harness to Instrument Panel Harness
7:  X230 X230 Engine Harness to Body Harness
8:  J154
