Engine Harness Routing (LL0 with MNG)

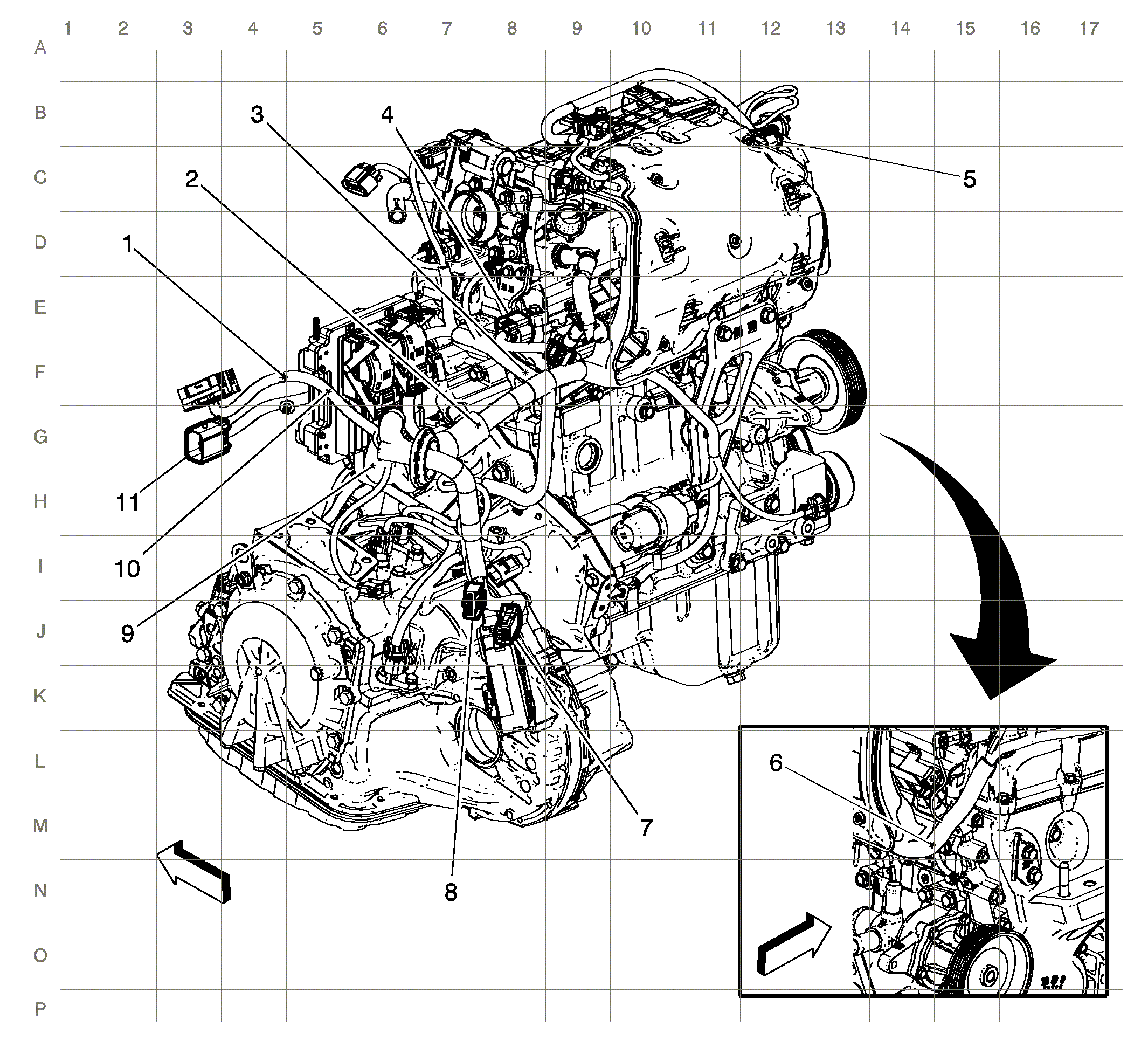

Fig 1: Engine Harness Routing (LL0 with MNG)
GM3276578Courtesy of GENERAL MOTORS COMPANY
Items
1:  J140
2:  J160
3:  J154
4:  X160 X160 Engine Harness to Fuel Injector Harness
5:  X170 X170 Engine Harness to Ignition Coils Harness
6:  J170
7:  X214 X214 Engine Harness to Instrument Panel Harness
8:  X230 X230 Engine Harness to Body Harness
9:  J101
10:  J139
11:  X111 X111 Forward Lamp Harness to Engine Harness
