Rear Seat Back Cushion Pad Replacement

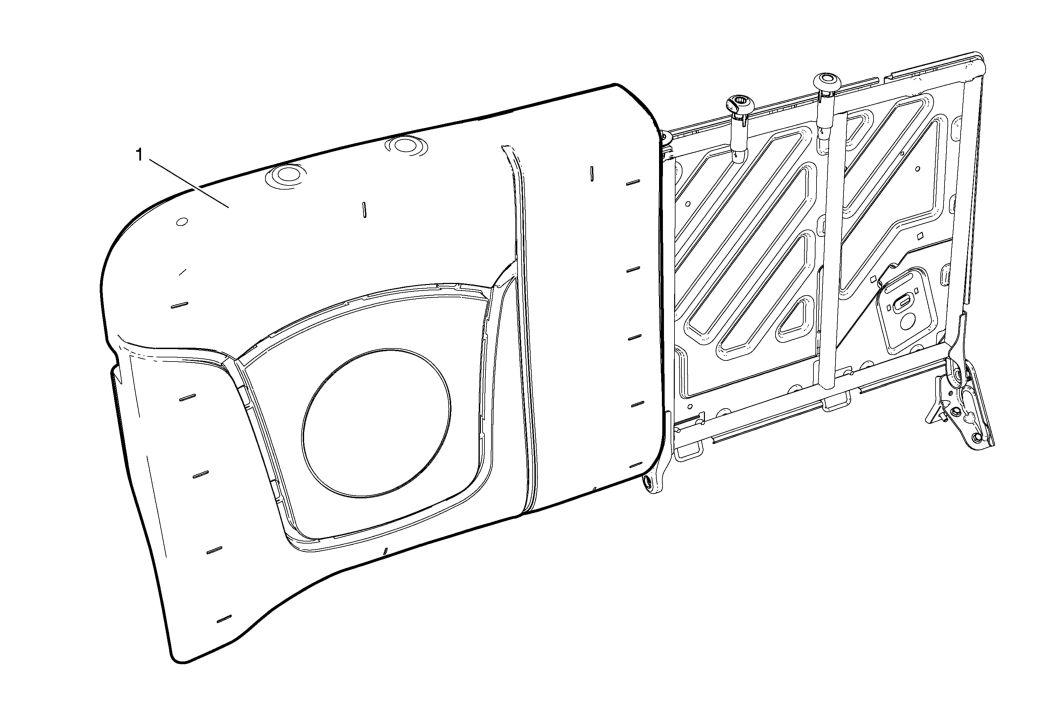

Fig 1: Rear Seat Back Cushion
GM2309380Courtesy of GENERAL MOTORS COMPANY
Rear Seat Back Cushion Pad Replacement

Callout Component Name
Preliminary Procedure
Remove the rear seat back cushion cover. Refer to Rear Seat Back Cover Replacement .
1 Rear Seat Back Cushion Pad
