Rear Seat Back Cover Replacement
Rear Seat Back Cover Replacement

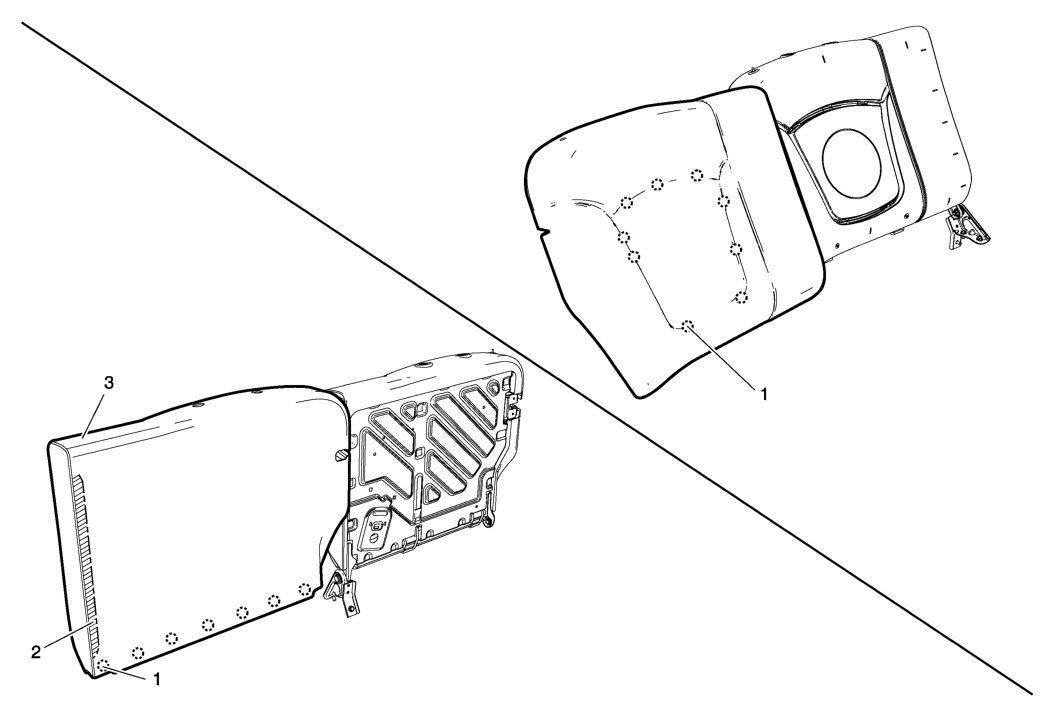

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat back cushion. Refer to Rear Seat Cushion Removal and Installation . |
|
| 1 | Rear Seat Back Cushion Cover Hog Ring (Qty: 16) TIP: Begin at the rear part of the rear seat, release the hog rings. |
| 2 | Rear Seat Back Cushion Cover Zipper TIP: Open the zipper to remove the cushion cover. |
| 3 | Rear Seat Back Cushion Cover |
