Front Side Door Upper Hinge and Lower Hinge Replacement

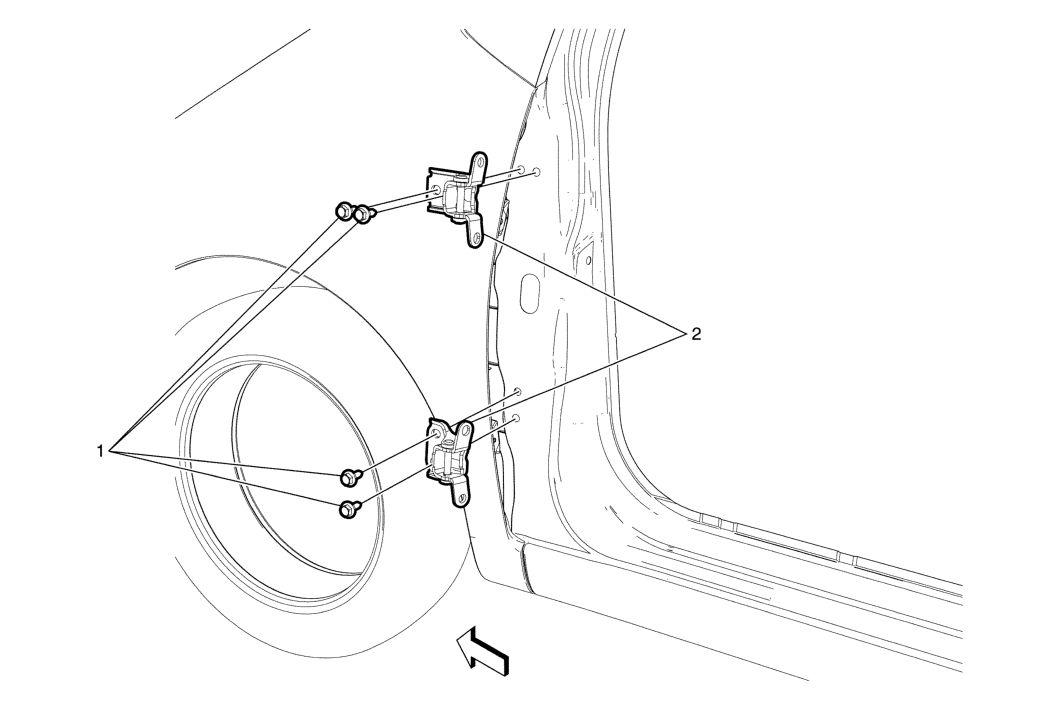

Fig 1: Front Side Door Upper Hinge and Lower Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement . Remove the front fender insulator. Refer to Front Fender Insulator Replacement . Remove the front side door. Refer to Front Side Door Replacement .
1	Front Side Door Hinge Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 30 N.m (22 lb ft)
2	Front Side Door Hinge Procedure Adjust front side door as needed. Refer to Front Side Door Adjustment .

Callout

Component Name

Preliminary Procedures

Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
Remove the front fender insulator. Refer to Front Fender Insulator Replacement .
Remove the front side door. Refer to Front Side Door Replacement .

Front Side Door Hinge Bolt (Qty: 4)

CAUTION:

Tighten
30 N.m (22 lb ft)

Front Side Door Hinge
Procedure
Adjust front side door as needed. Refer to Front Side Door Adjustment .
