Front Side Door Adjustment

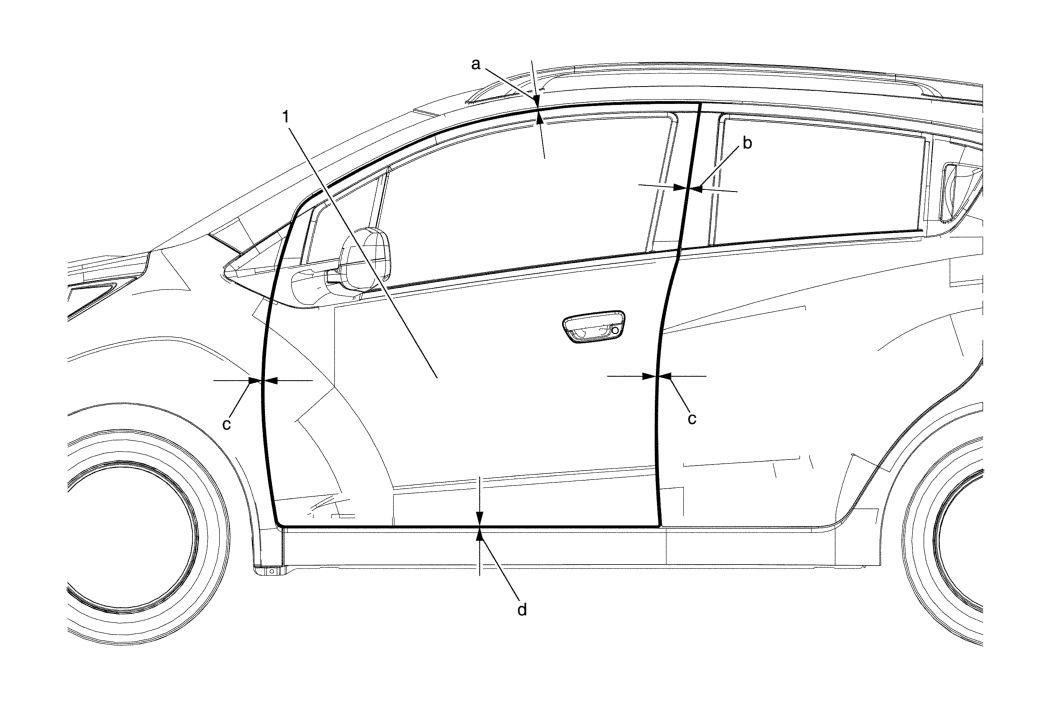

Fig 1: Front Side Door

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Front Side Door to Roof CAUTION: Refer to Fastener Caution . Procedure Loosen the 4 front side door hinge bolts to adjust the front side door. Adjust the front side door in order to obtain an even gap between the front side door and the roof, the rear door, the rocker panel and the front fender and so that the front side door is flush with the roof, the rear door, the rocker panel and the front fender. Adjustment: Front side door to roof (a) 4.0 mm ± 1.0 mm (0.16 in ± 0.04 in) Front side door to rear door (b) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in) Front side door to rocker panel (c) 5.0 mm ± 1.0 mm (0.20 in ± 0.04 in) Front side door to front fender (d) 3.5 mm ± 0.75 mm (0.14 in ± 0.03 in) Tighten 28 N.m (21 lb ft)

Callout

Component Name

Preliminary Procedure
Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Front Side Door to Roof

CAUTION:

Procedure

Loosen the 4 front side door hinge bolts to adjust the front side door.
Adjust the front side door in order to obtain an even gap between the front side door and the roof, the rear door, the rocker panel and the front fender and so that the front side door is flush with the roof, the rear door, the rocker panel and the front fender.

Adjustment:

Tighten
28 N.m (21 lb ft)
