Rear Bumper Impact Bar Replacement

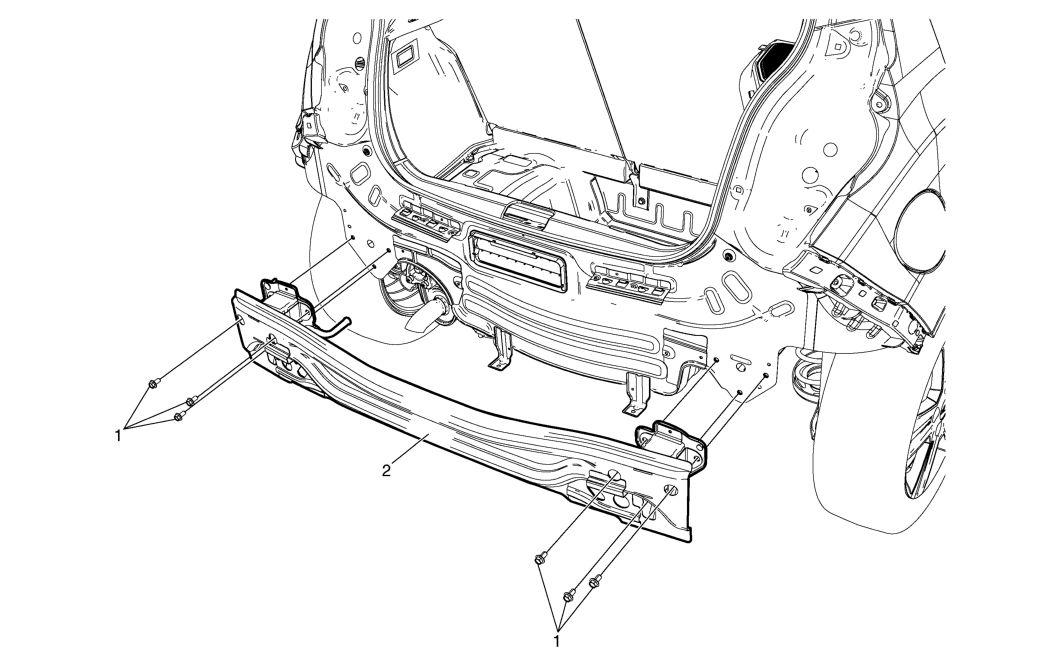

Fig 1: Rear Bumper Impact Bar
GM2754159Courtesy of GENERAL MOTORS COMPANY
Rear Bumper Impact Bar Replacement

Callout Component Name
Preliminary Procedure
Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement .
1 Rear Bumper Impact Bar Bolt (Qty: 6)
CAUTION:

Refer to Fastener Caution .


Tighten
22 (16 lb ft)
2 Rear Bumper Impact Bar
