Front Bumper Lower Impact Bar Replacement
Front Bumper Lower Impact Bar Replacement

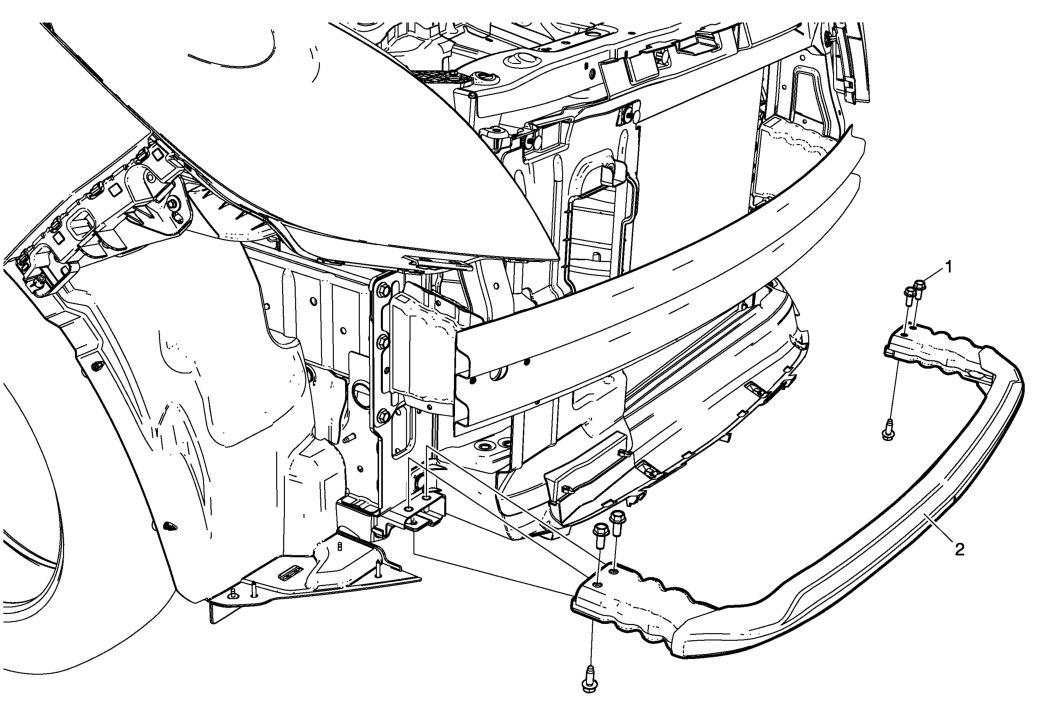

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement . |
|
| 1 | Front Bumper Lower Impact Bar Bolt (Qty :6)
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 2 | Front Bumper Lower Impact Bar |
