Liftgate Strut Bracket Replacement

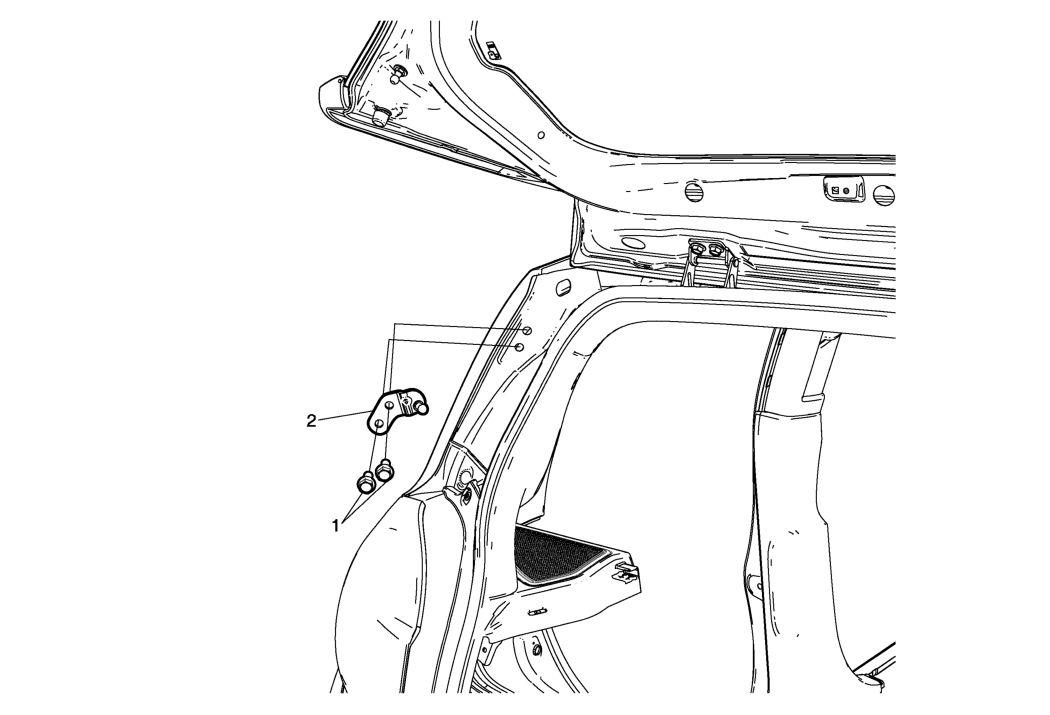

Fig 1: Liftgate Strut Bracket
GM2327729Courtesy of GENERAL MOTORS COMPANY
Liftgate Strut Bracket Replacement

Callout Component Name
WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Preliminary Procedure Release the liftgate strut from the liftgate. Refer to Liftgate Strut Replacement .
1 Liftgate Strut Bracket Bolt (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
20 N.m (15 lb ft)
2 Liftgate Strut Bracket
