Liftgate Strut Replacement

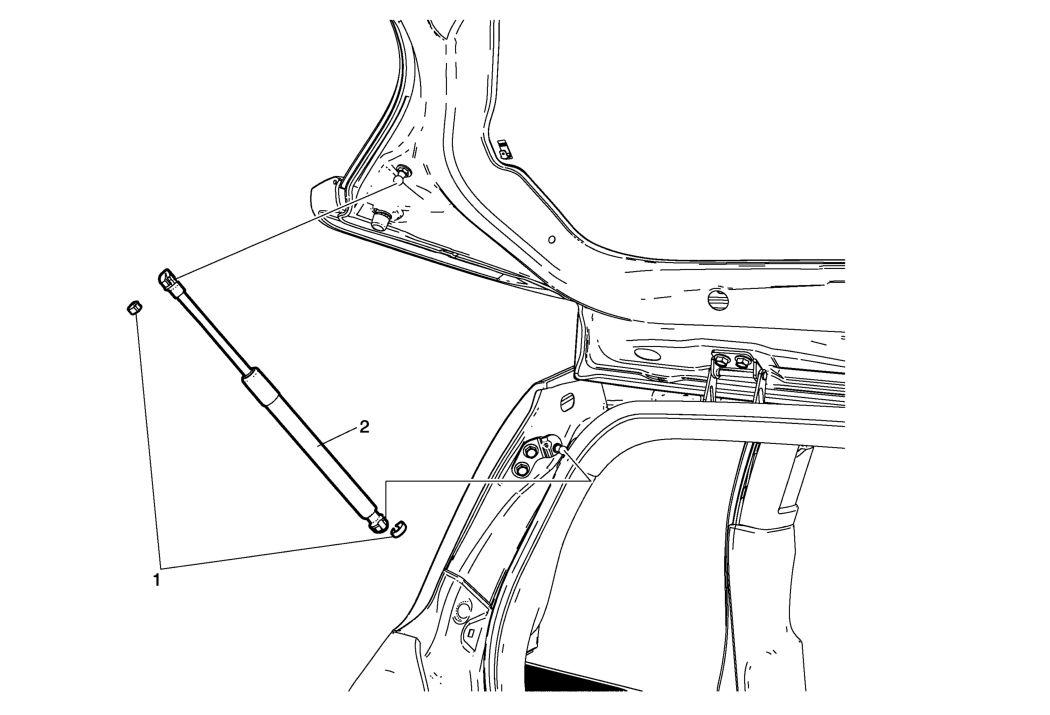

Fig 1: Liftgate Strut
GM2327730Courtesy of GENERAL MOTORS COMPANY
Liftgate Strut Replacement

Callout Component Name
WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
1 Liftgate Strut Clip (Qty: 2)
2 Liftgate Strut
