Hood Primary Latch Release Cable Replacement

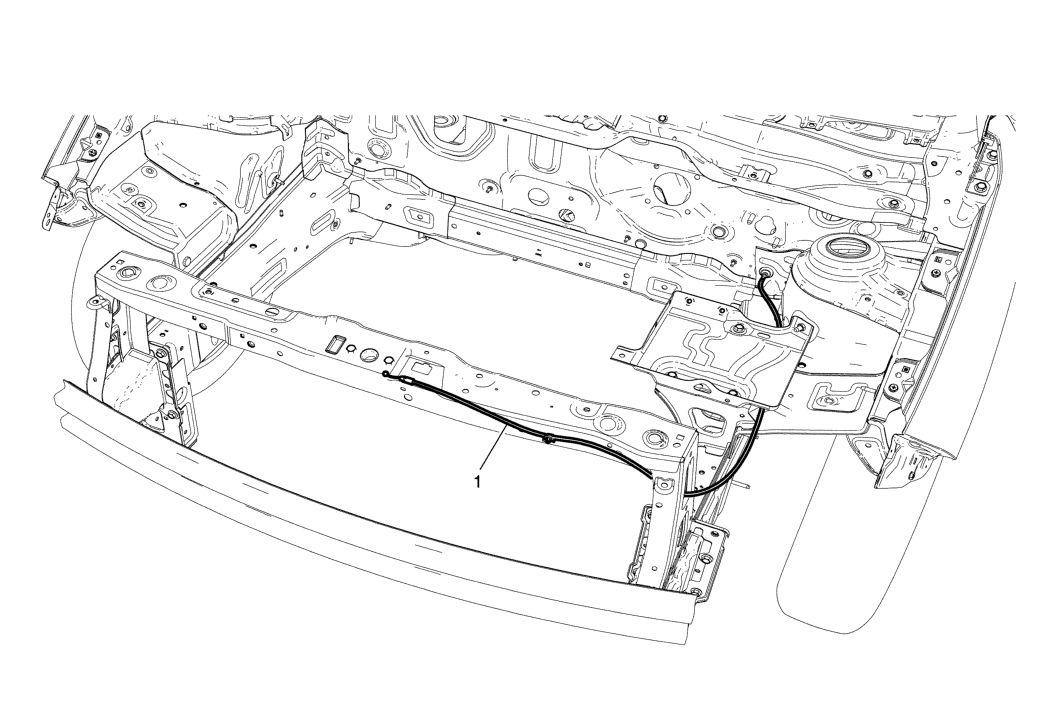

Fig 1: Hood Primary Latch Release Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove hood primary latch release cable handle. Refer to Hood Primary Latch Release Cable Handle Replacement . Remove air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Hood Primary Latch Release Cable Procedure To release the hood primary latch release cable, unhook from hood primary and secondary latch.

Callout

Component Name

Preliminary Procedures

Remove hood primary latch release cable handle. Refer to Hood Primary Latch Release Cable Handle Replacement .
Remove air cleaner assembly. Refer to Air Cleaner Assembly Replacement .

Hood Primary Latch Release Cable
Procedure
To release the hood primary latch release cable, unhook from hood primary and secondary latch.
