Hood Primary Latch Release Cable Handle Replacement

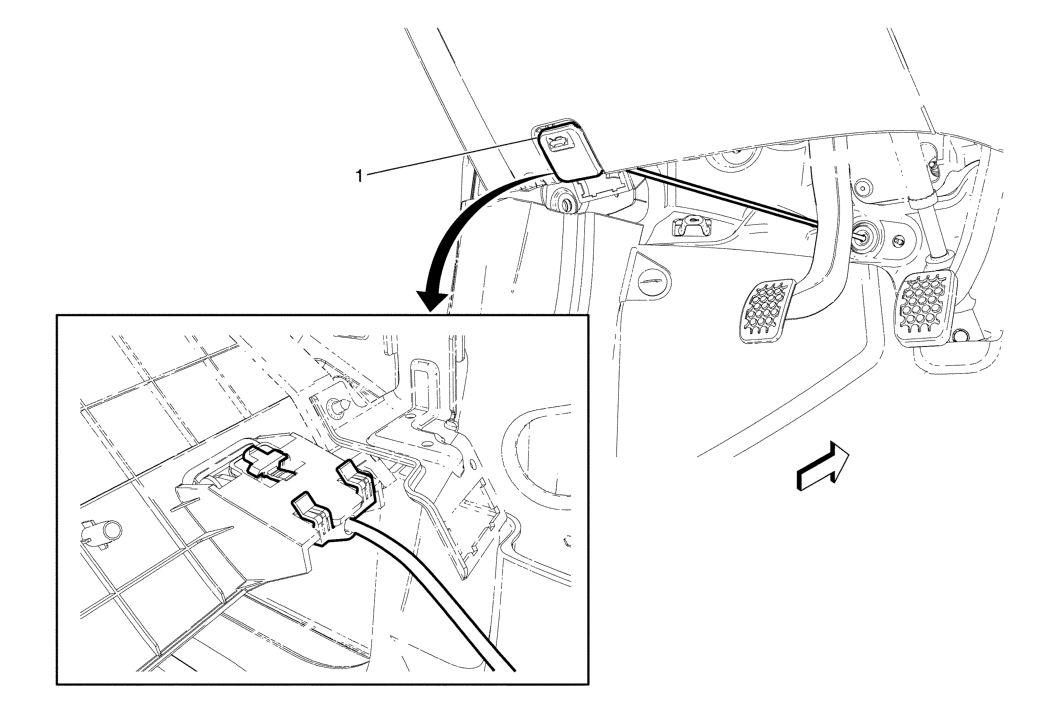

Fig 1: Hood Primary Latch Release Cable Handle
GM2309122Courtesy of GENERAL MOTORS COMPANY
Hood Primary Latch Release Cable Handle Replacement

Callout Component Name
1 Hood Primary Latch Release Cable Handle

Procedure

  1. Pull down the hood primary latch release cable handle.
  2. To release the handle, pull down the cable and unhook from the handle.
