Auxiliary Heater and Air Conditioning Control Replacement

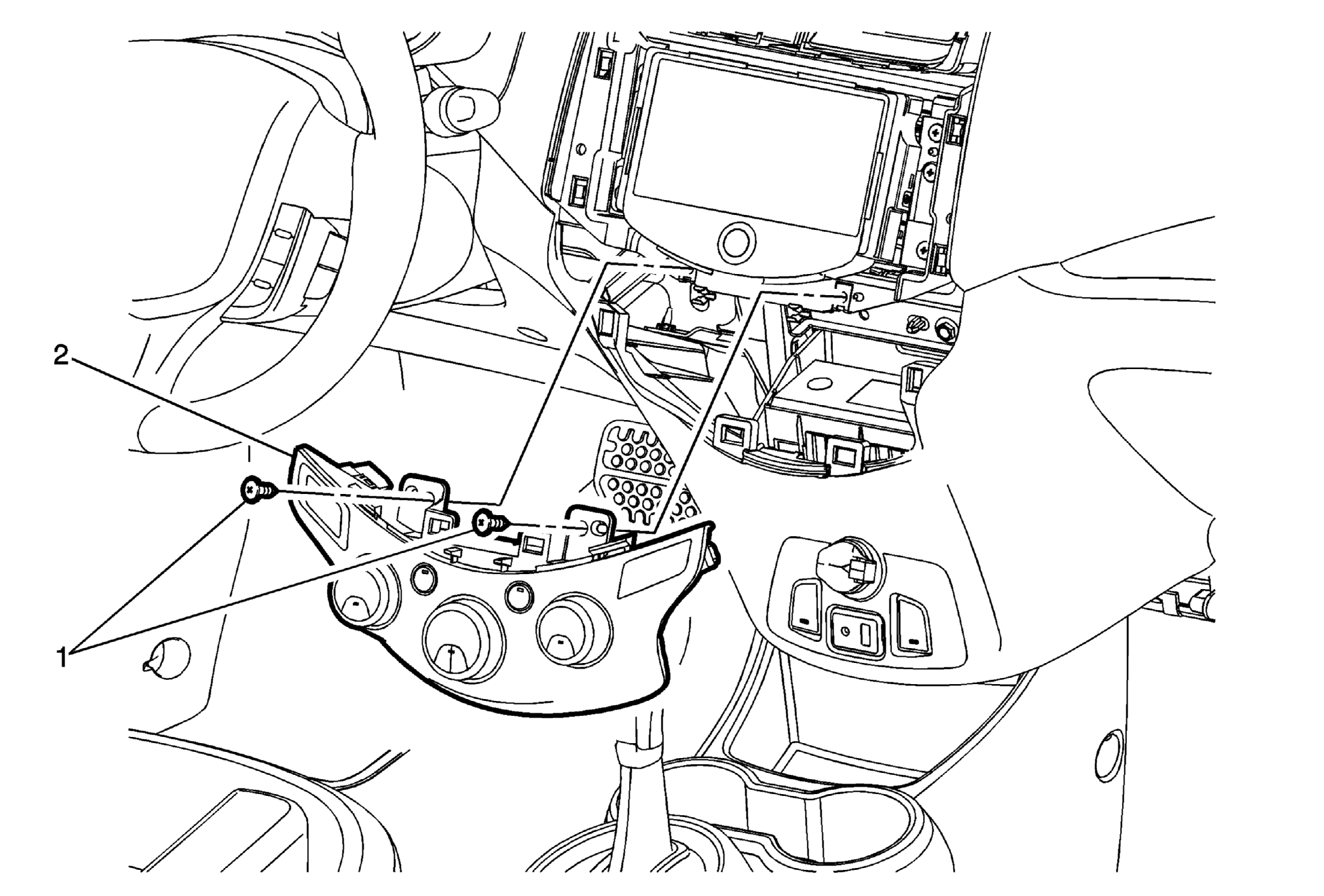

Fig 1: Auxiliary Heater and Air Conditioning Control
GM3136393Courtesy of GENERAL MOTORS COMPANY
Auxiliary Heater and Air Conditioning Control Replacement

Callout Component Name
Preliminary Procedure
Remove the instrument panel center trim plate applique. Refer to Instrument Panel Center Trim Plate Applique Replacement .
1 Heater and Air Conditioning Auxiliary Control Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Heater and Air Conditioning Auxiliary Control

Procedure

  1. Disconnect electrical connections.
  2. Transfer the components as necessary.
