Instrument Panel Center Trim Plate Applique Replacement

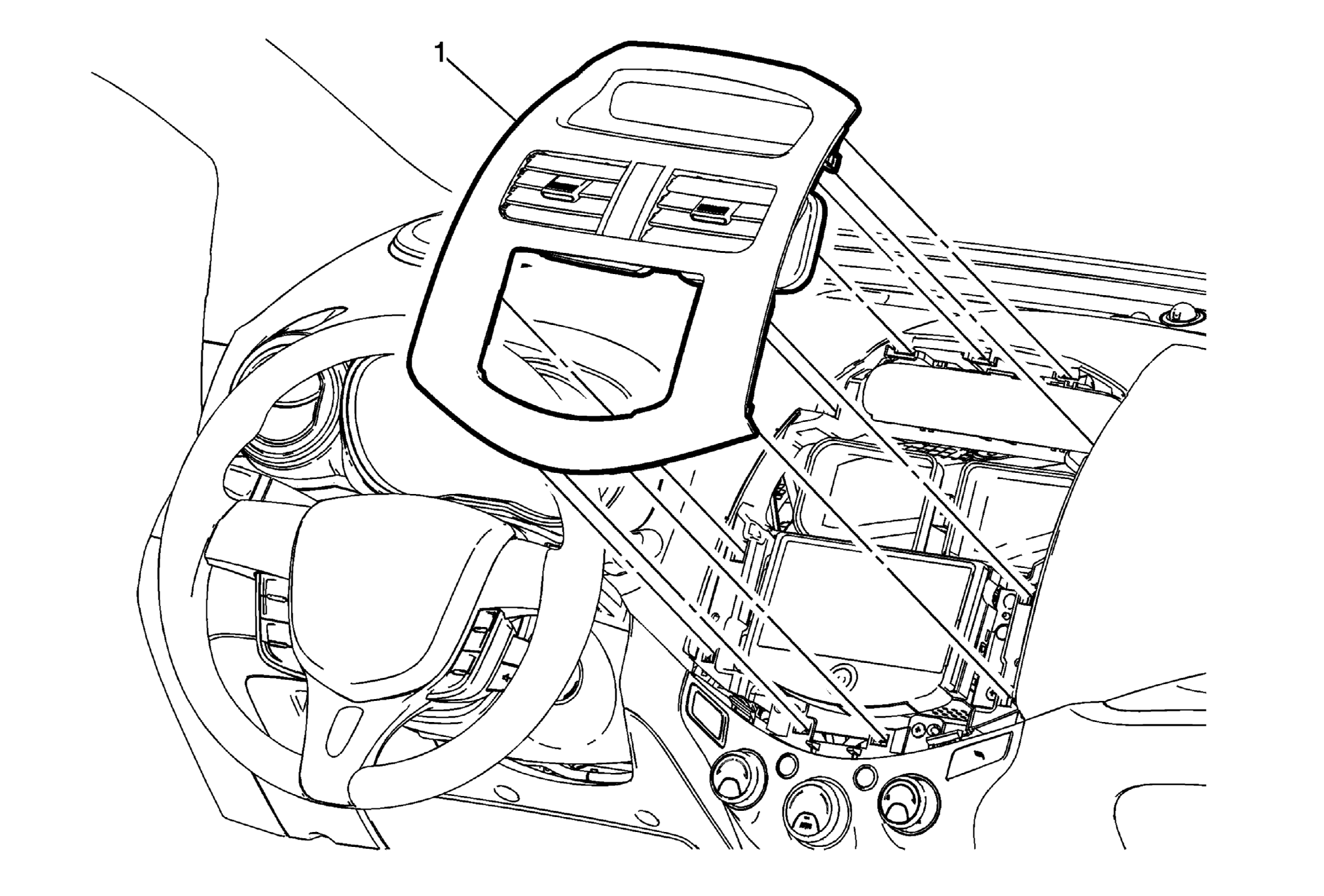

Fig 1: Instrument Panel Center Trim Plate Applique
GM2952546Courtesy of GENERAL MOTORS COMPANY
Instrument Panel Center Trim Plate Applique Replacement

Callout Component Name
1 Instrument Panel Center Trim Plate Applique

Procedures

  1. Use a flat bladed plastic trim tool to aid in the removal of the trim plate applique from the instrument panel assembly. Starting at the bottom of the trim plate.
  2. Disconnect the electrical connection.
  3. Transfer components as necessary.
