Instrument Cluster Replacement

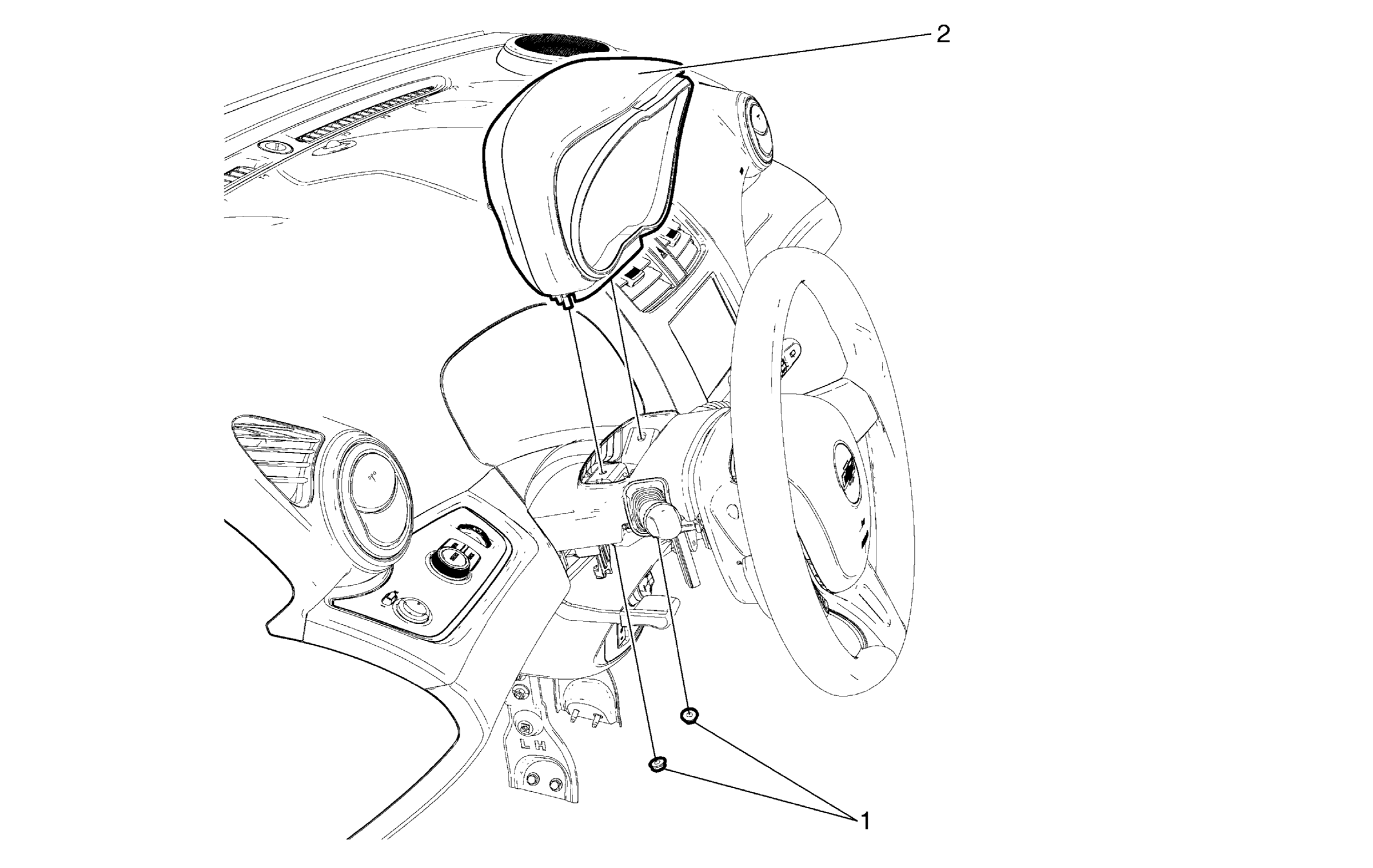

Fig 1: Instrument Cluster
GM2963112Courtesy of GENERAL MOTORS COMPANY
Instrument Cluster Replacement

Callout Component Name

Preliminary Procedures

  1. Remove the instrument cluster rear cover. Refer to Instrument Cluster Rear Cover Replacement .
  2. Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
1 Instrument Cluster Nut (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
10 (89 lb in)
2 Instrument Cluster

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for programming and set up information.
